Parking Brake Cable: Components

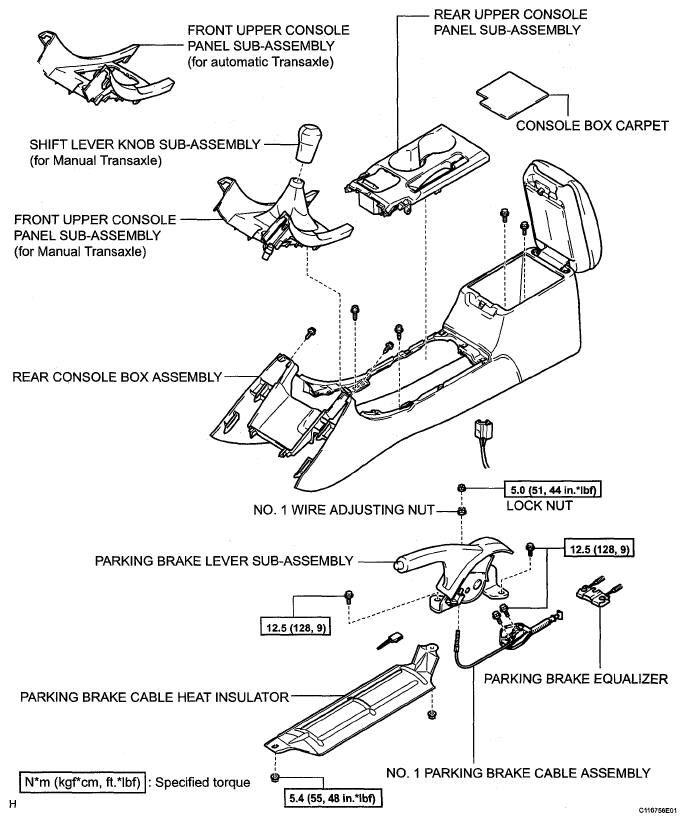

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications (1 Of 2)
G05540455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

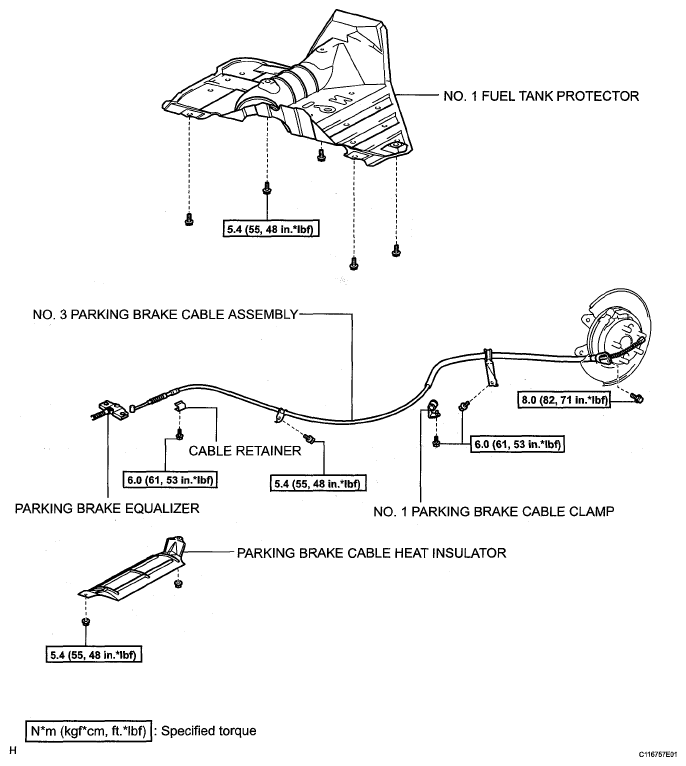

Fig 2: Parking Brake Cable Replacement Components With Torque Specifications (2 Of 2)
G05540456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
