Power Windows do not Operate at All: Wiring Diagram

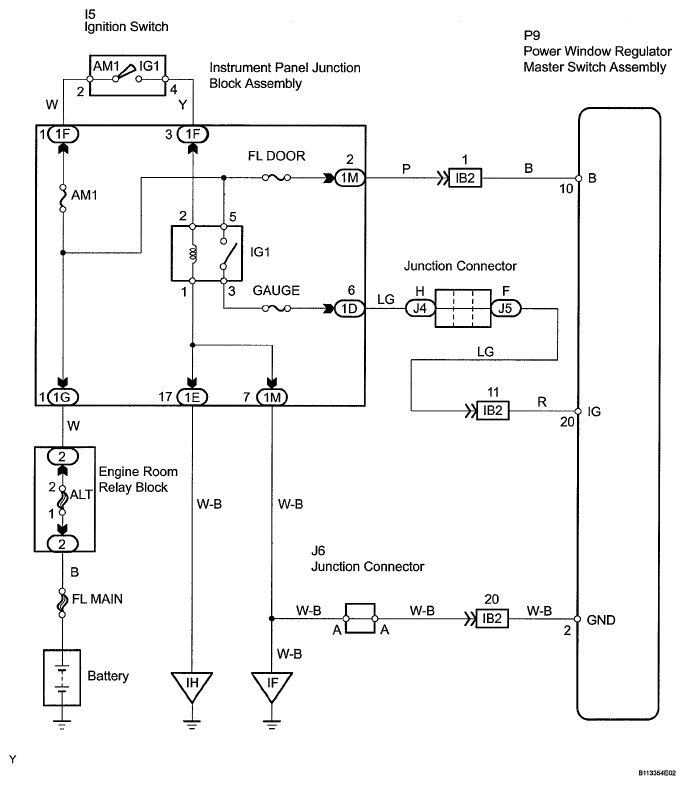

Fig 1: Power Windows - Wiring Diagram

G05541750

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
