Front Drive Shaft Assembly: Components

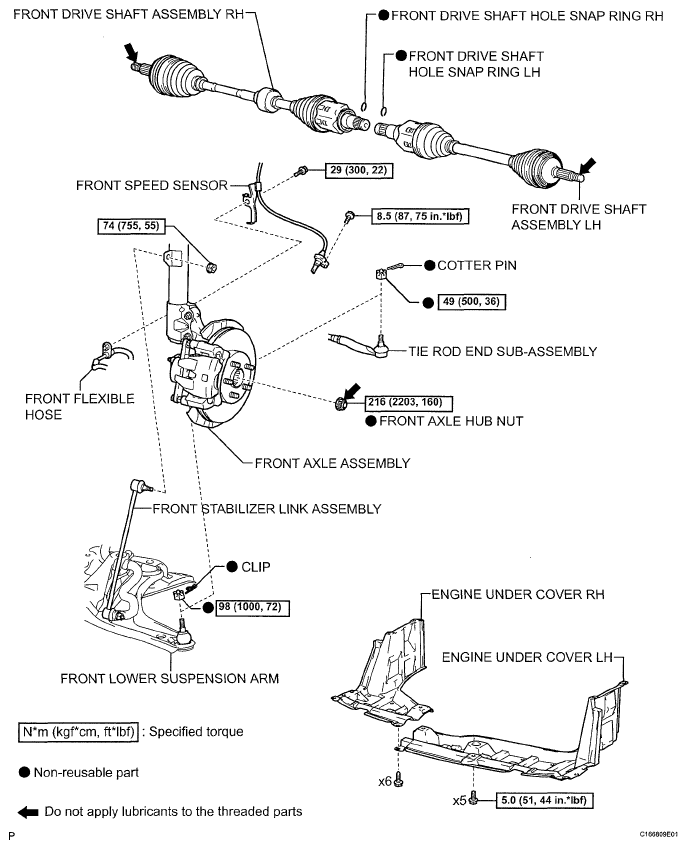

Fig 1: Front Drive Shaft Assembly Replacement Components With Torque Specifications (1 Of 2)
G05400039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

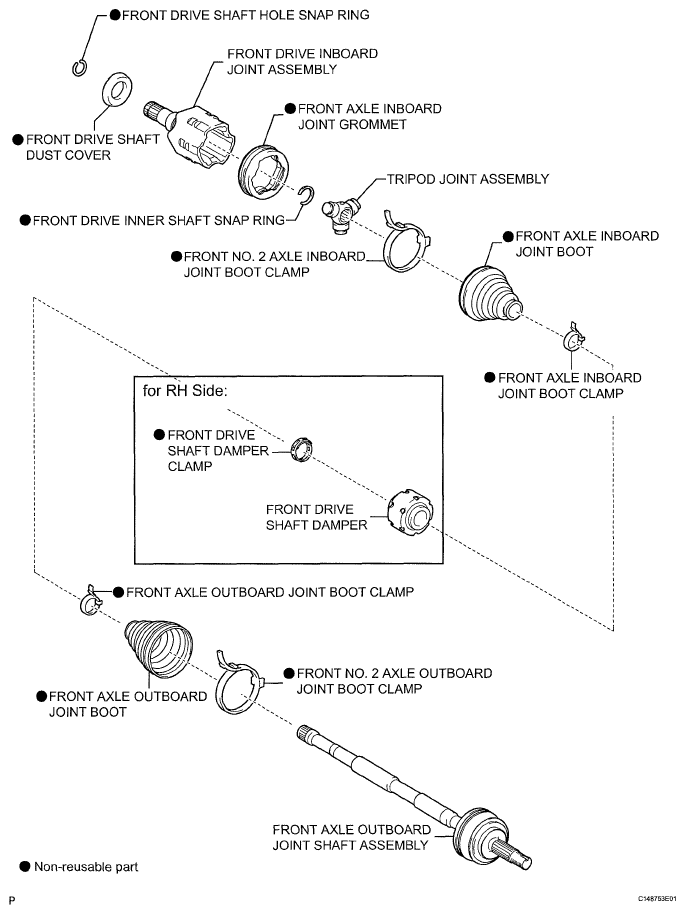

Fig 2: Identifying Front Drive Shaft Assembly Components (2 Of 2)
G05400775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
