Home >> Scion >> 2008 >> xD Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U341E Automatic Transaxle >> Park / Neutral Position Switch >> Components

Park / Neutral Position Switch: Components

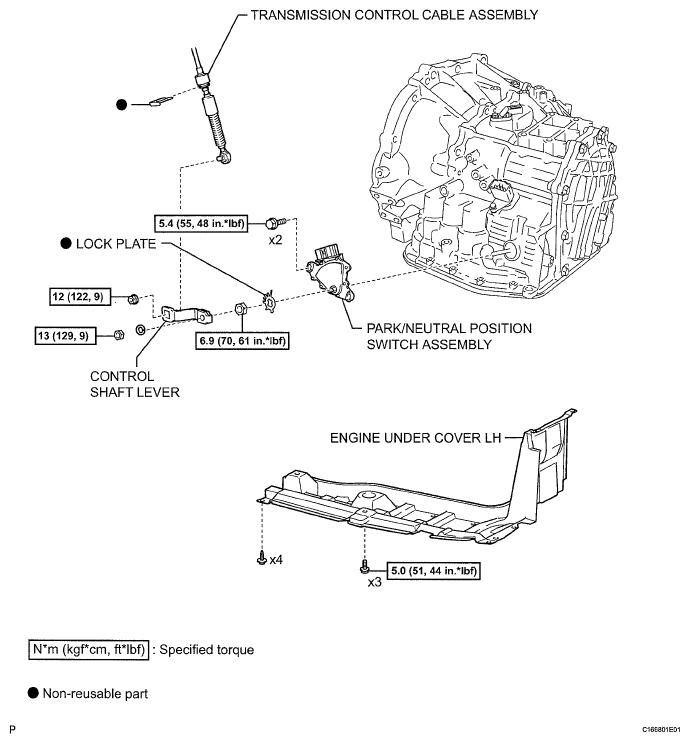

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications

G05399957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
