U341E Automatic Transaxle
>>
Automatic Transaxle System
>>
Parts Location
Parts Location

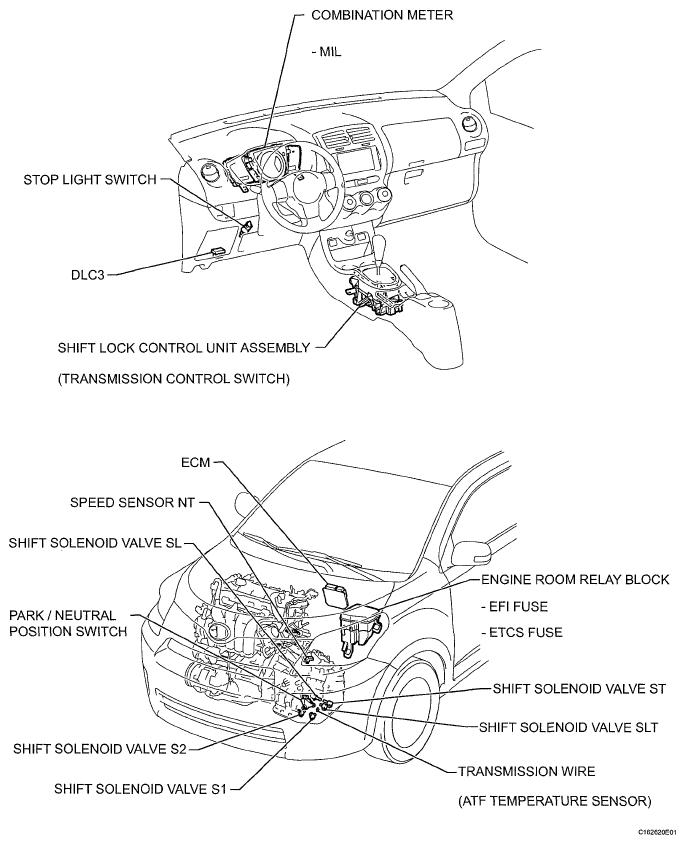

Fig 1: Identifying Automatic Transaxle System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
