Scion
>>
2008
>>
xD Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
2ZR-FE Engine Control System
>>
SFI System
>>
DTC P2118 Throttle Actuator Control Motor Current Range / Performance
>>
Wiring Diagram
DTC P2118 Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

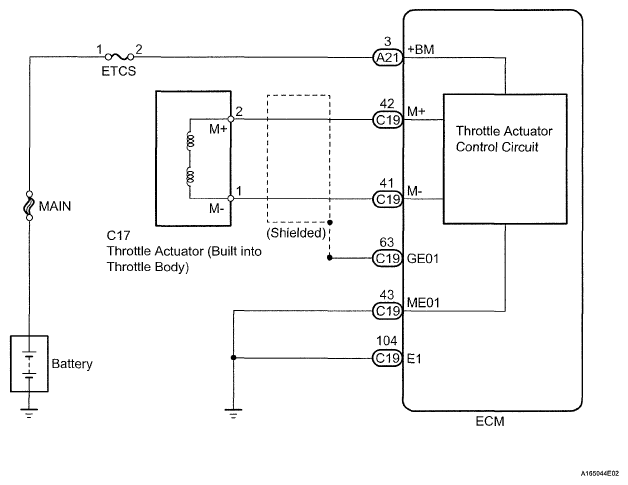

Fig 1: Throttle Actuator Control Motor - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
