2ZR-FE Intake
>>
Air Cleaner And Hose
>>
Components
Air Cleaner And Hose: Components

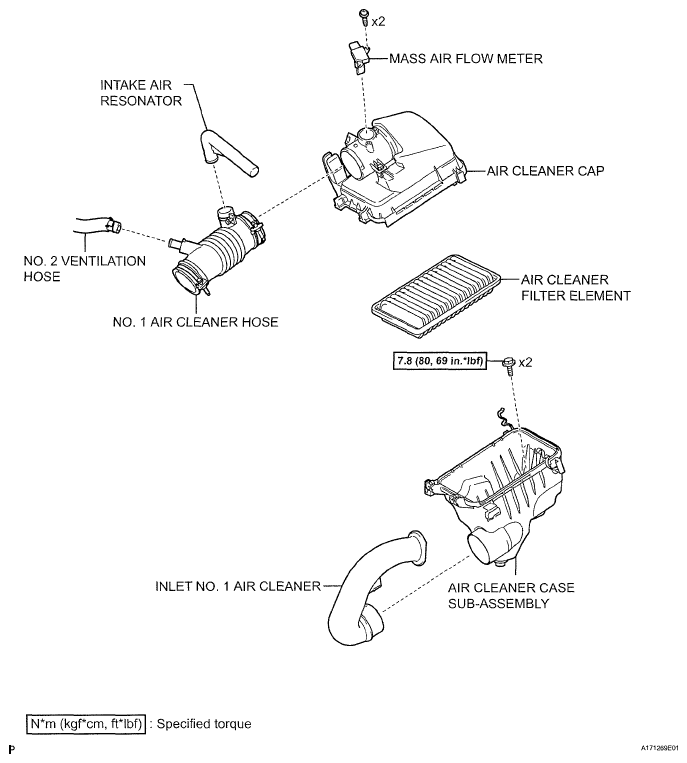

Fig 1: Air Cleaner And Hose Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
