Front Door Lock: Components

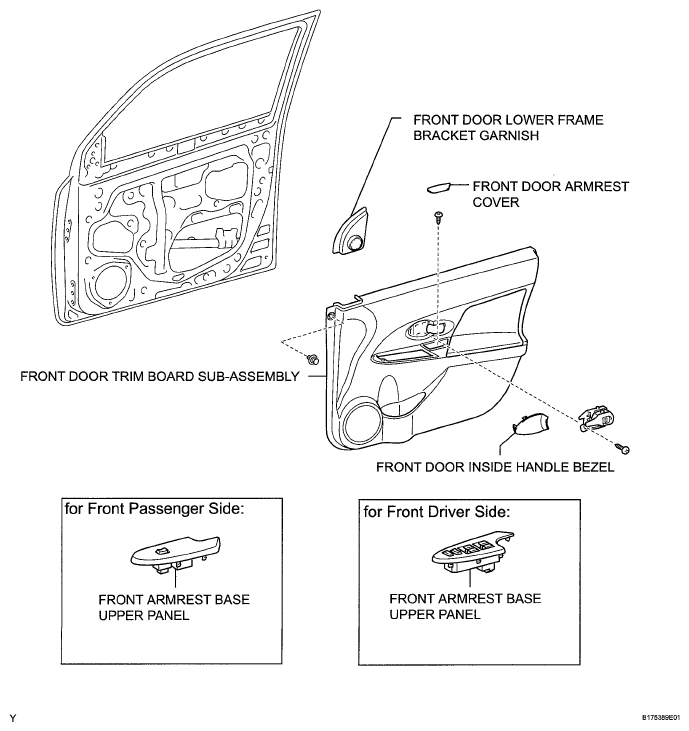

Fig 1: Identifying Front Door Lock Components (1 Of 3)
G05402780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

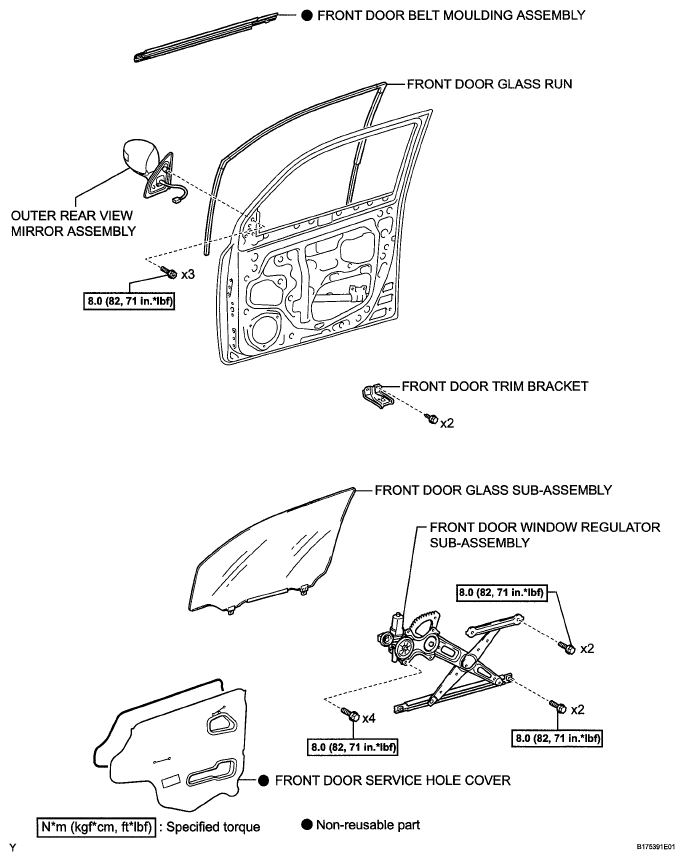

Fig 2: Front Door Lock Replacement Components With Torque Specifications (2 Of 3)
G05402781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

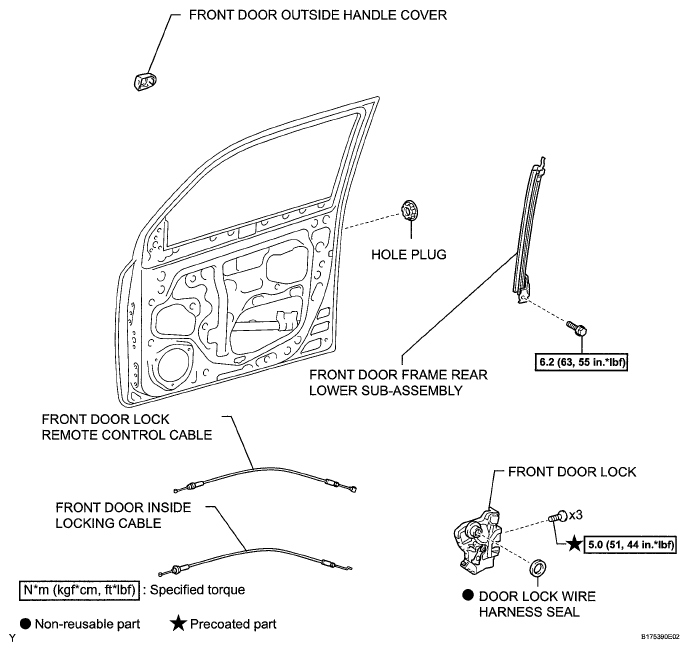

Fig 3: Front Door Lock Replacement Components With Torque Specifications (3 Of 3)
G05402782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
