Home >> Scion >> 2008 >> xB Standard >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> Emission Control >> PCV Valve >> Components

PCV Valve: Components

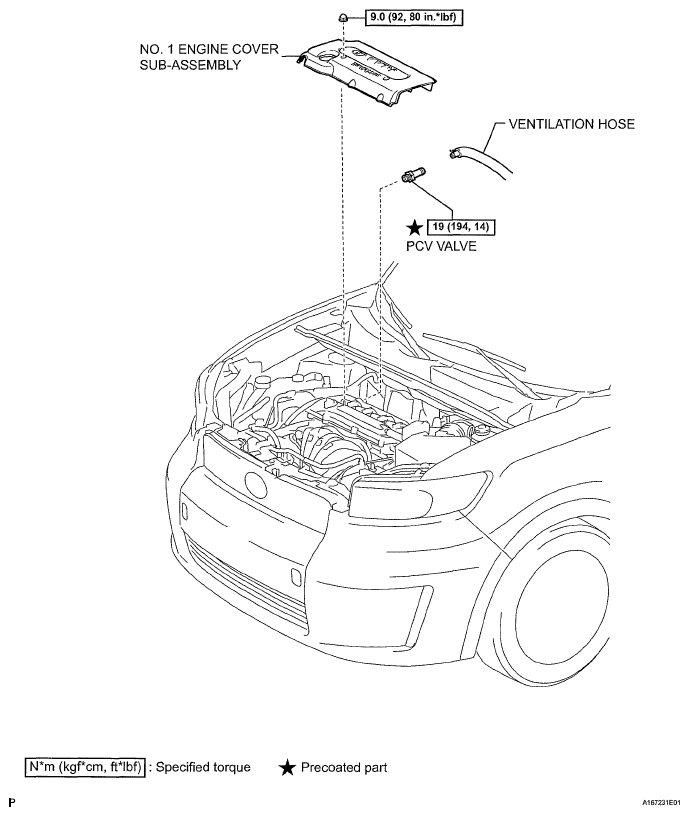

Fig 1: PCV Valve Replacement Components With Torque Specifications

G05387632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
