System Diagram

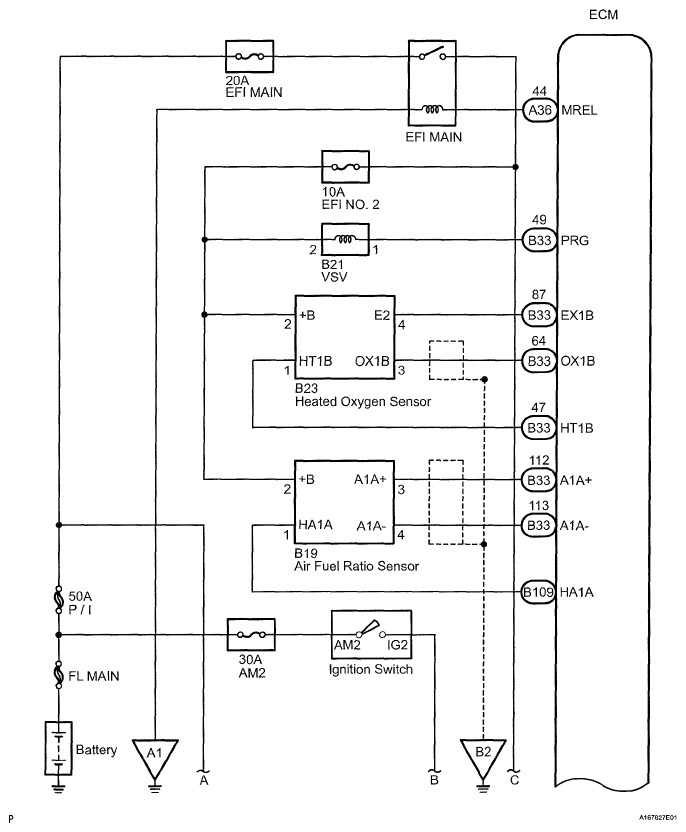

Fig 1: Emission Control System Diagram (1 Of 2)
G05387592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

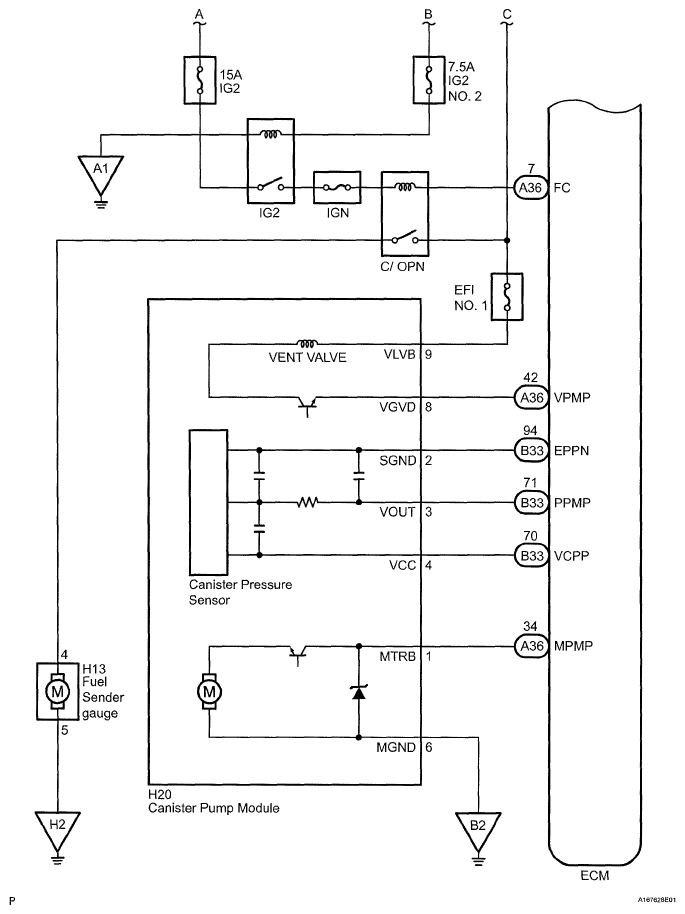

Fig 2: Emission Control System Diagram (2 Of 2)
G05387593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
