Fuel Pressure Pulsation Damper: Components

Fig 1: Identifying Fuel Pressure Pulsation Damper Components And Tightening Torque (1 Of 2)
G05387512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

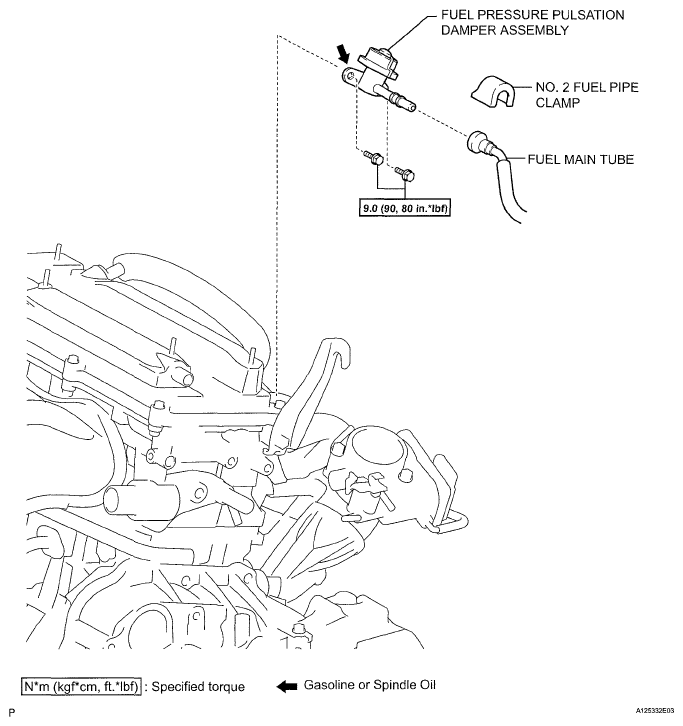

Fig 2: Identifying Fuel Pressure Pulsation Damper Components And Tightening Torque (2 Of 2)
G05387513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
