2AZ-FE Cooling: Radiator: Components

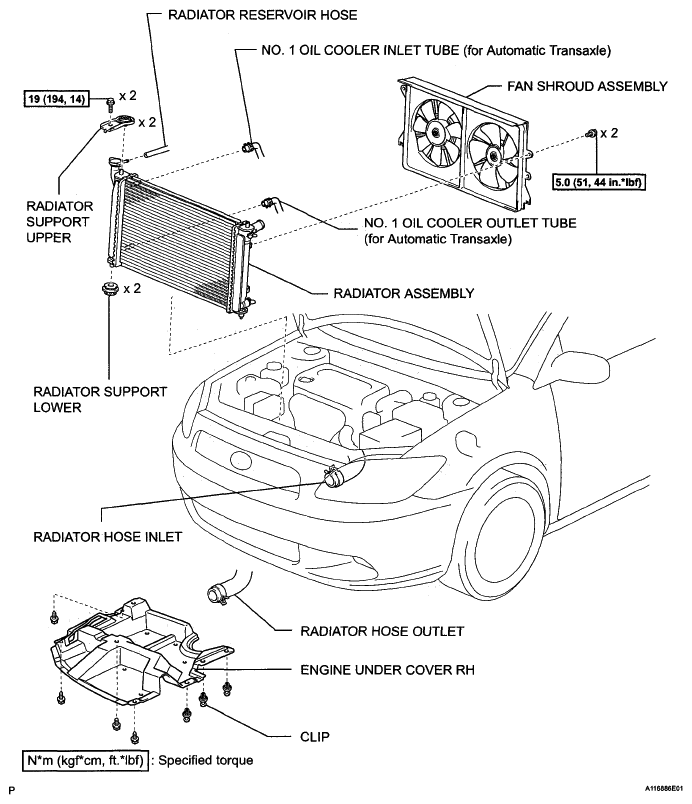

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 2)
G05538630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

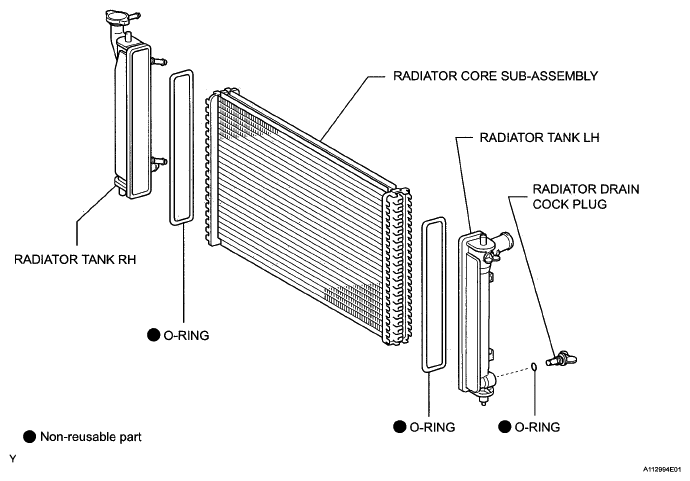

Fig 2: Identifying Radiator Components (2 Of 2)
G05538631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
