Brake Actuator: Components

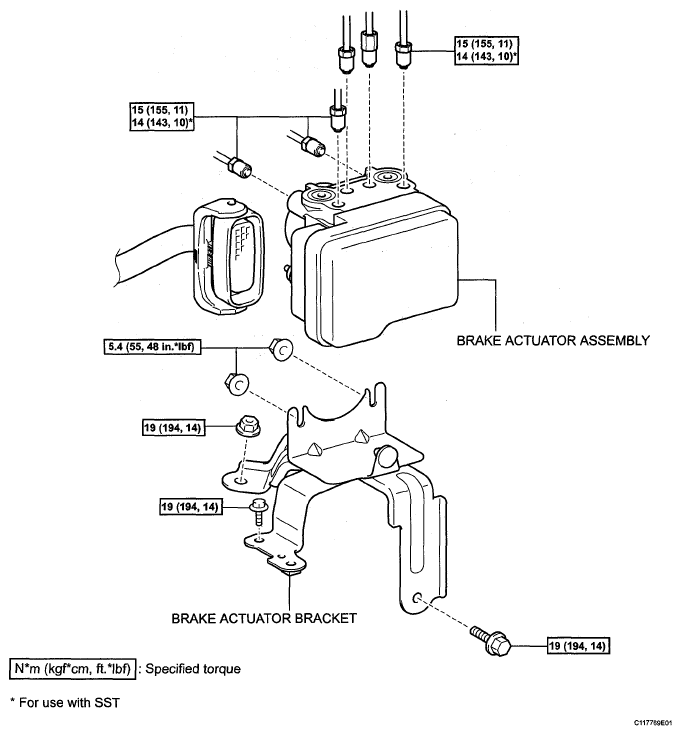

Fig 1: Brake Actuator Replacement Components With Torque Specifications

G05540352

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
