Lower Instrument Panel: Installation

  1. INSTALL LOWER INSTRUMENT PANEL ASSEMBLY
    1. Install the lower instrument panel, and check that the wire harness are not caught.

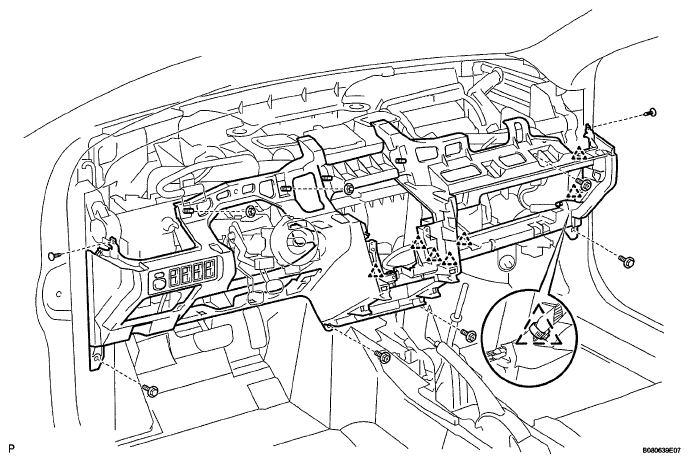

      Fig 1: Identifying Lower Instrument Panel Assembly With Connectors, Wire Harness Clamps, Clips, Screws And Bolts
      G05541897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 3 connectors.
    3. Attach the 7 wire harness clamps.
    4. Install the 2 clips.
    5. Install the 3 screws, 2 bolts and 2 nuts.
    6. Connect the hood lock control cable.
  2. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the No. 2 heater to register duct with the 3 clips.
      Fig 2: Identifying No. 2 Heater To Register Duct Clips
      G05541898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Attach the 2 clips to install the cowl side trim.
    2. Install the clip.
  4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures for the RH side and LH side.

  5. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Attach the 12 claws to install the front door scuff plate LH.
      Fig 3: Identifying Cowl Side Trim Clips
      G05541899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and LH side.

  7. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Install the instrument panel under cover, as shown in the illustration.
    2. Attach the 2 claws.
  8. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
    1. Install the driver side knee airbag ( INSTALLATION ).
      Fig 4: Identifying Instrument Panel Under Cover Claws
      G05541900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR CONSOLE BOX ASSEMBLY
    1. Connect the clamp and install the console box.
    2. Install the 2 bolts.
    3. Manual transaxle:

      Install the 2 screws.

    4. Automatic transaxle:

      Install the 4 screws.

      Fig 5: Identifying Rear Console Box Assembly With Screws And Bolts
      G05541891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the console box carpet.
    6. Connect the connector.
      Fig 6: Identifying Console Box Carpet Connector
      G05541902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
    1. Attach the 7 claws to install the console upper rear panel.
  11. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY  ( INSTALLATION )
  12. INSTALL HEADLAMP DIMMER SWITCH ASSEMBLY  ( INSTALLATION )
    Fig 7: Identifying Claws On Console Upper Rear Panel
    G05541903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL STEERING COLUMN COVER
  14. INSTALL STEERING WHEEL ASSEMBLY  ( INSTALLATION )
  15. INSTALL STEERING WHEEL PAD ASSEMBLY  ( INSTALLATION )
  16. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Install the upper instrument panel (see INSTALLATION  ).
  17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  18. PERFORM INITIALIZATION
    1. Perform initialization ( INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  19. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light ( DIAGNOSIS SYSTEM ).
