Parts Location

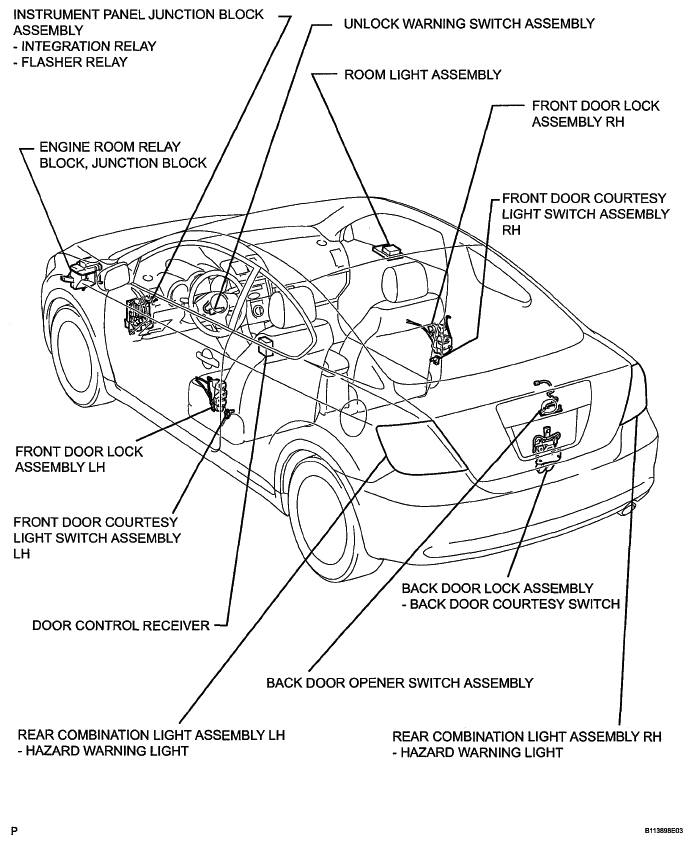

Fig 1: Identifying Wireless Door Lock Control System Parts Location (1 Of 2)
G05541560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

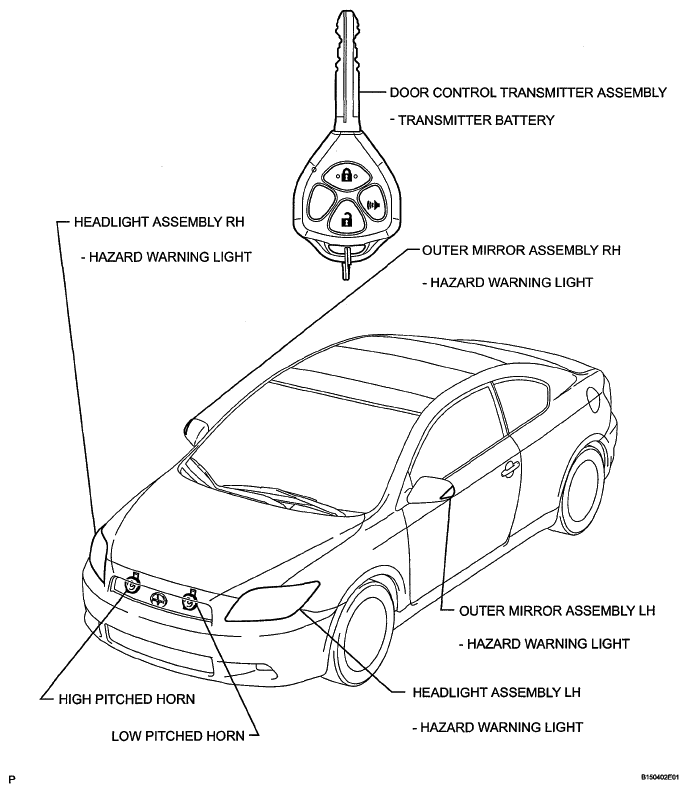

Fig 2: Identifying Wireless Door Lock Control System Parts Location (2 Of 2)
G05541561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
