Home
>>
Scion
>>
2008
>>
tC Base, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Door Lock
>>
Key Reminder Warning System
>>
Parts Location
Parts Location

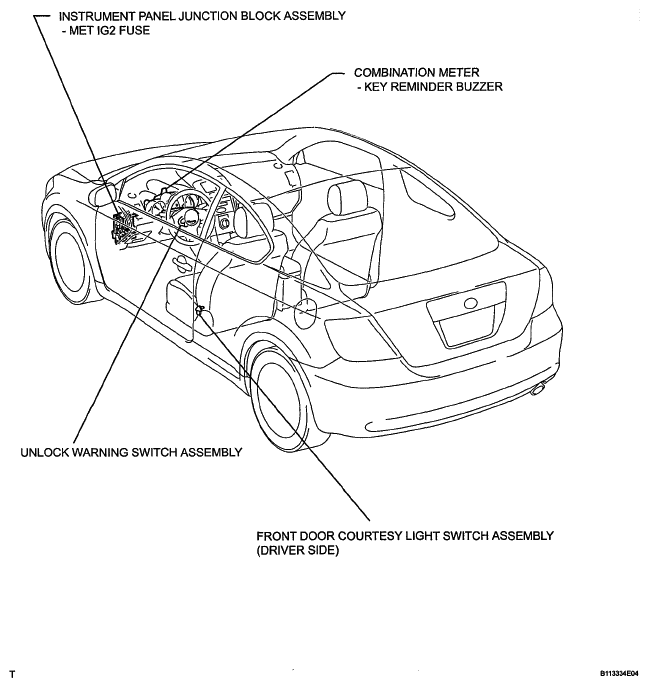

Fig 1: Identifying Key Reminder Warning System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
