Parts Location

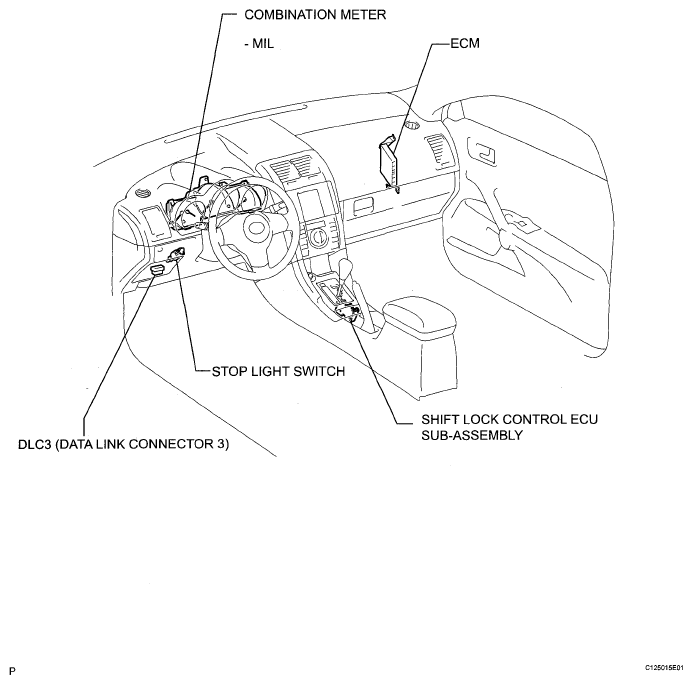

Fig 1: Identifying Automatic Transaxle Electronic Parts Location (1 Of 2)
G05539276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

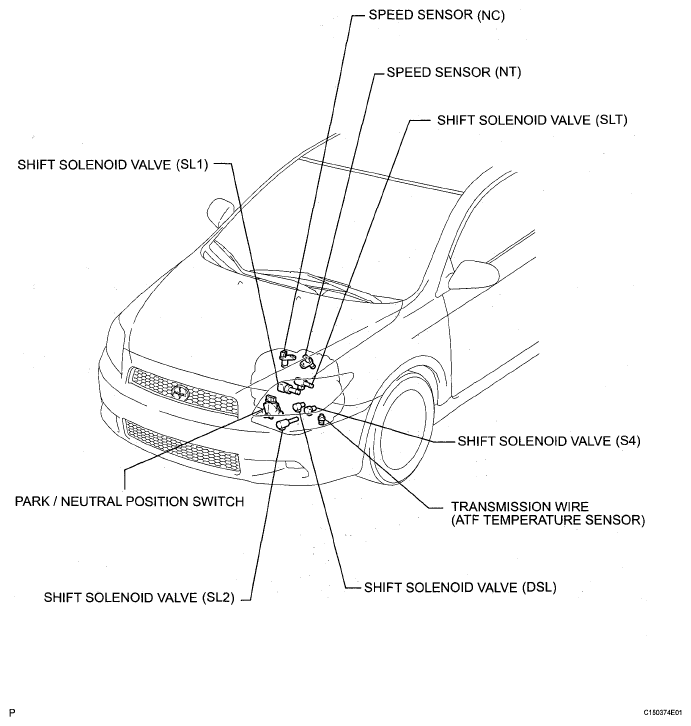

Fig 2: Identifying Automatic Transaxle Electronic Parts Location (2 Of 2)
G05539277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
