Fuel Pump Control Circuit: Wiring Diagram

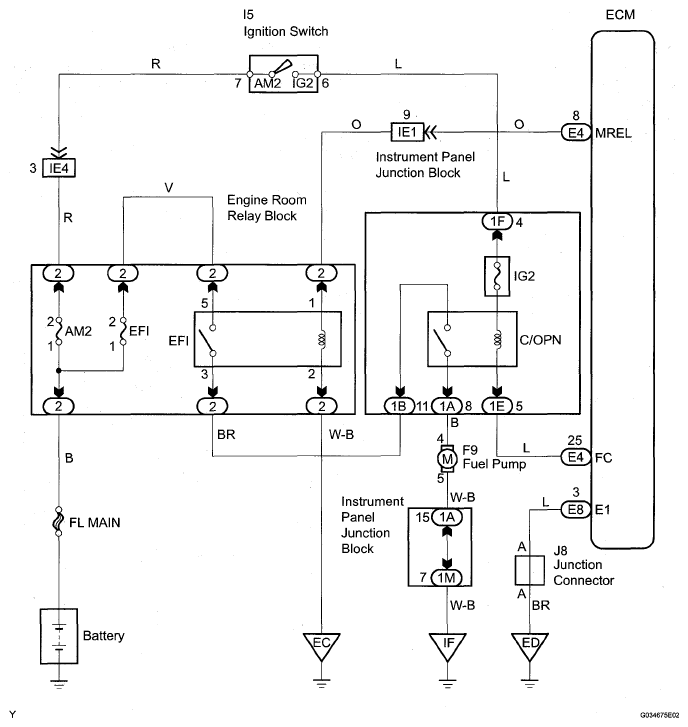

Fig 1: Engine Room Relay Block - Wiring Diagram

G05539164

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
