DTC P2118: Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

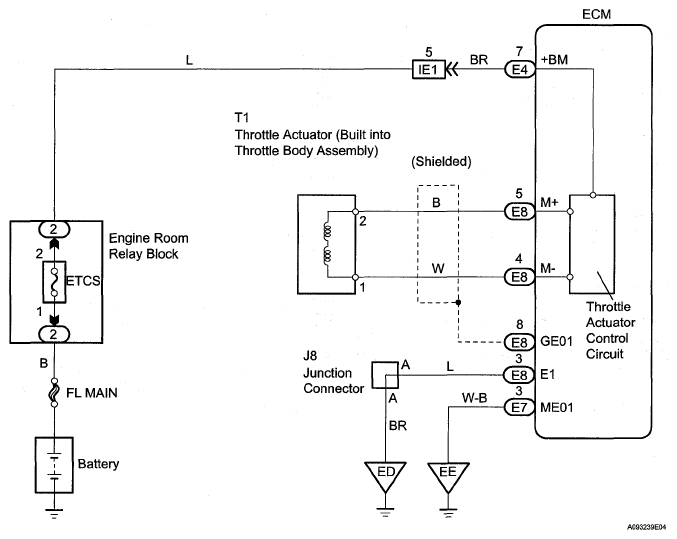

Fig 1: Throttle Actuator Control Motor - Wiring Diagram

G05539081

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
