DTC P0115: Engine Coolant Temperature Circuit; DTC P0117: Engine Coolant Temperature Circuit Low Input; DTC P0118: Engine Coolant Temperature Circuit High Input: Wiring Diagram

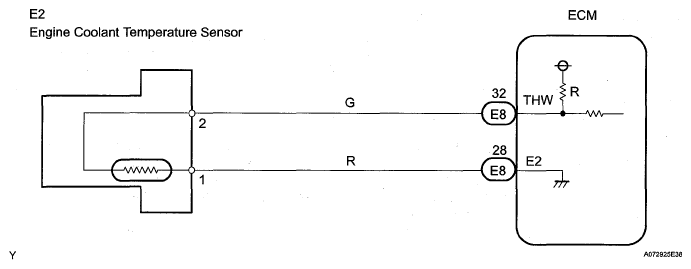

Fig 1: Engine Coolant Temperature Sensor - Wiring Diagram
G05538973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
