Oil Pump: Components

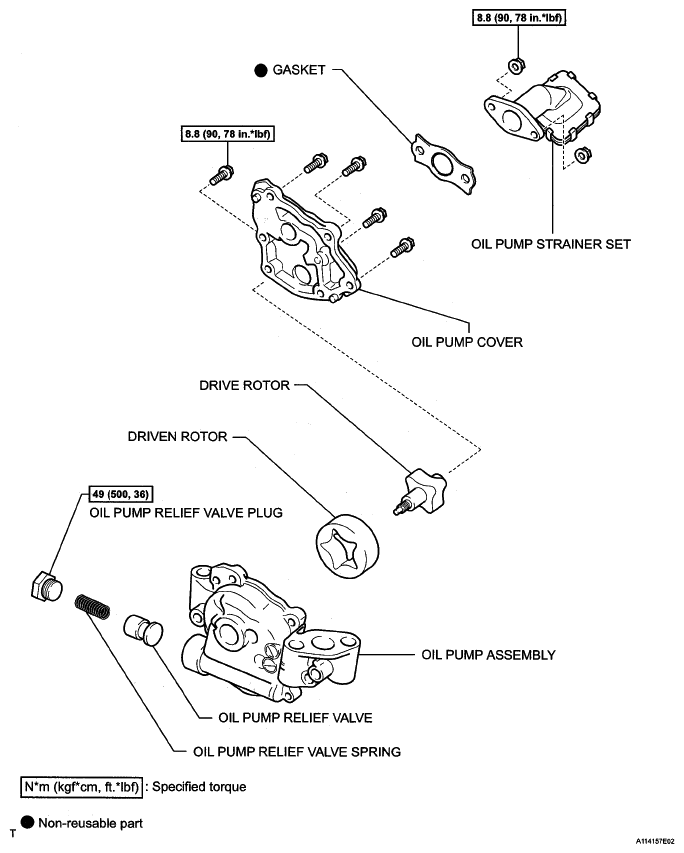

Fig 1: Identifying Oil Pump Replacement Components With Torque Specification (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Oil Pump Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

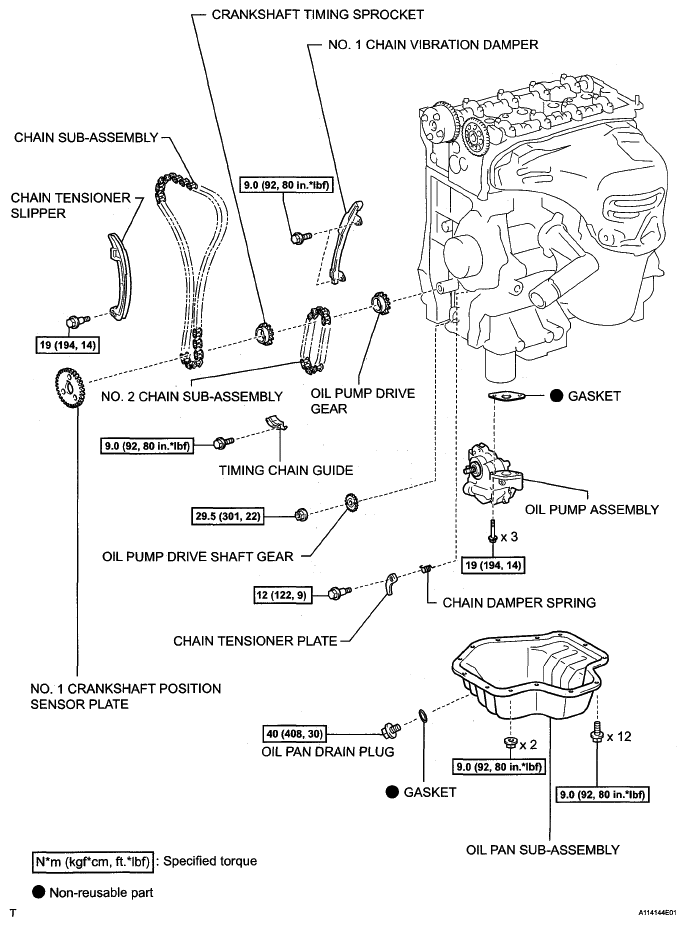

Fig 3: Identifying Oil Pump Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

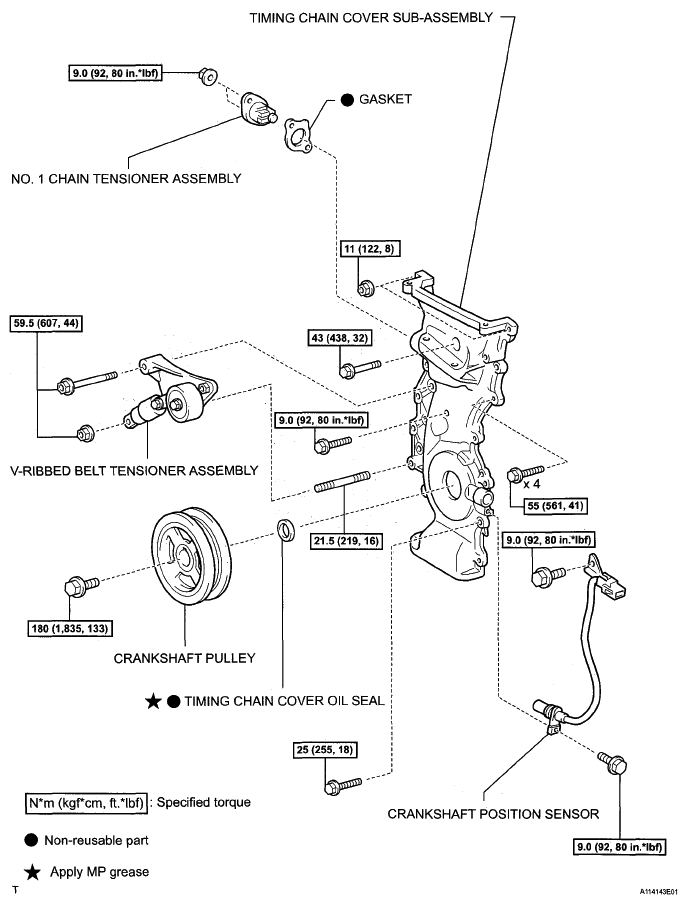

Fig 4: Identifying Oil Pump Replacement Components With Torque Specifications (4 Of 6)

Fig 5: Identifying Oil Pump Replacement Components With Torque Specifications (5 Of 6)

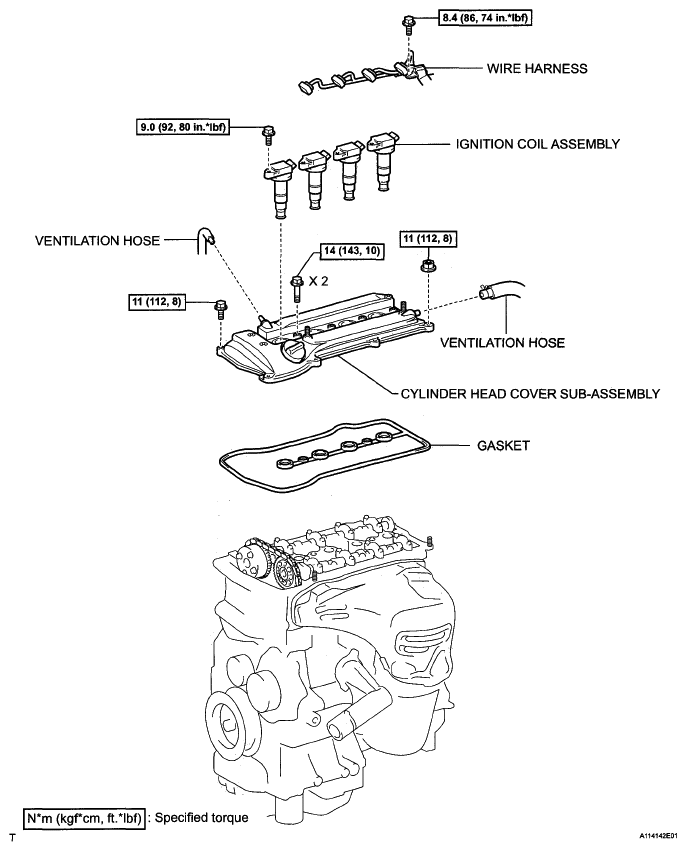

Fig 6: Identifying Oil Pump Replacement Components With Torque Specifications (6 Of 6)
