Ground Point: Notes

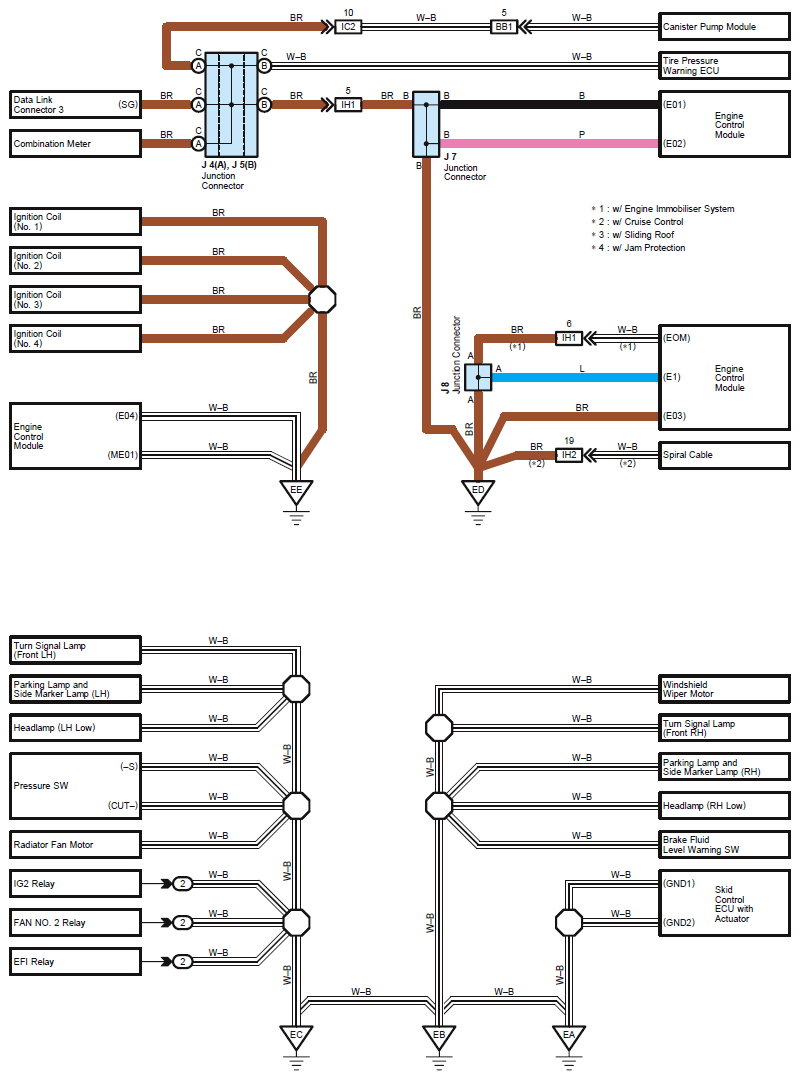

Fig 1: Ground Point - Wiring Diagram (1 Of 3)
G07603232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

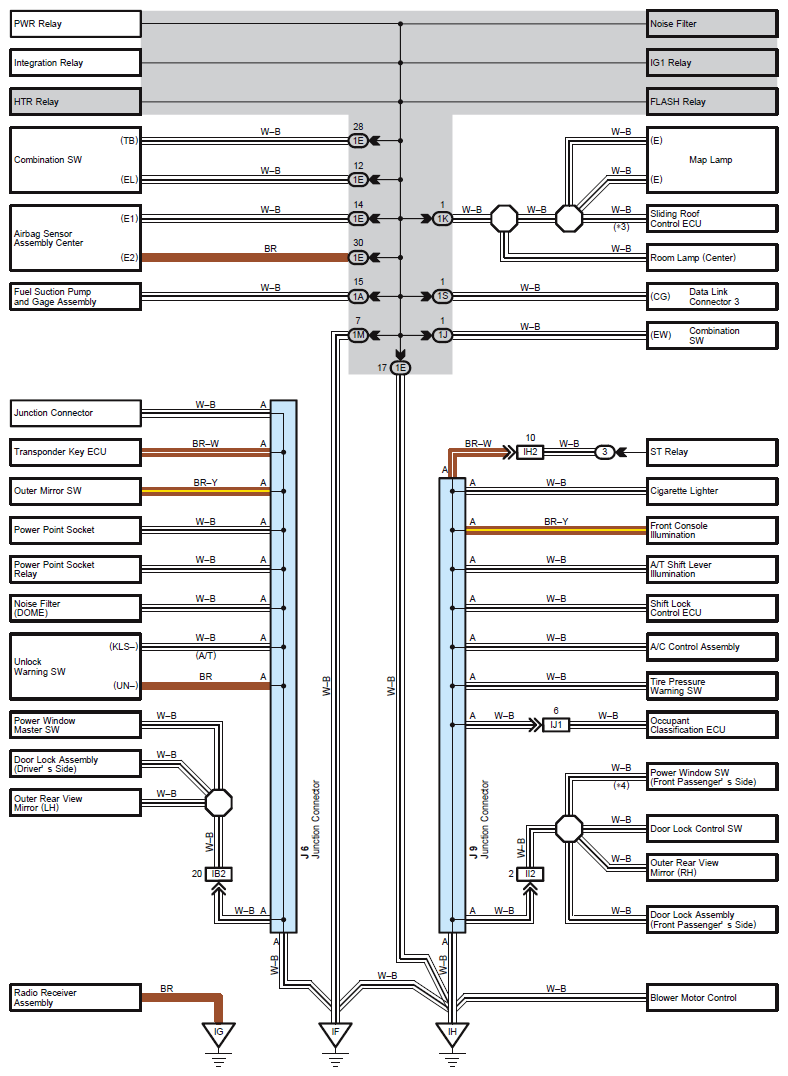

Fig 2: Ground Point - Wiring Diagram (2 Of 3)
G07603233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

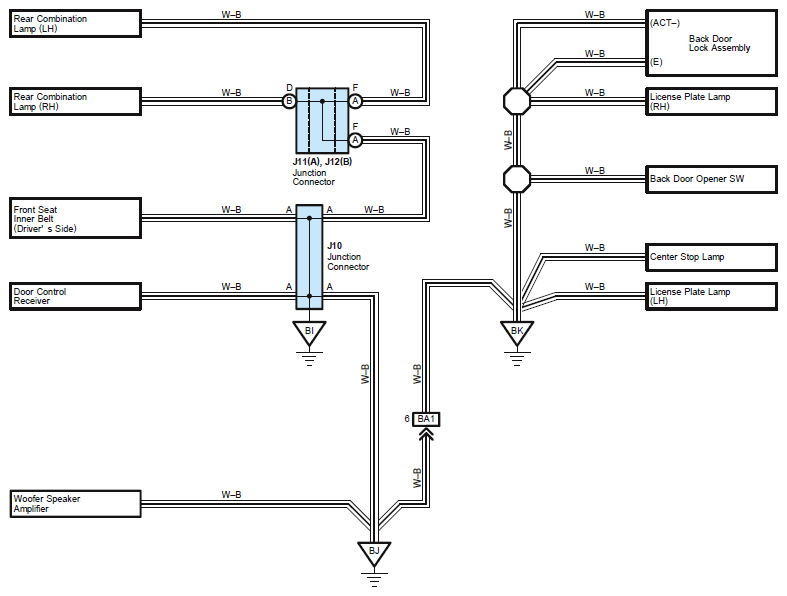

Fig 3: Ground Point - Wiring Diagram (3 Of 3)
G07603234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
