Only Wireless Control Function is Inoperative: Wiring Diagram

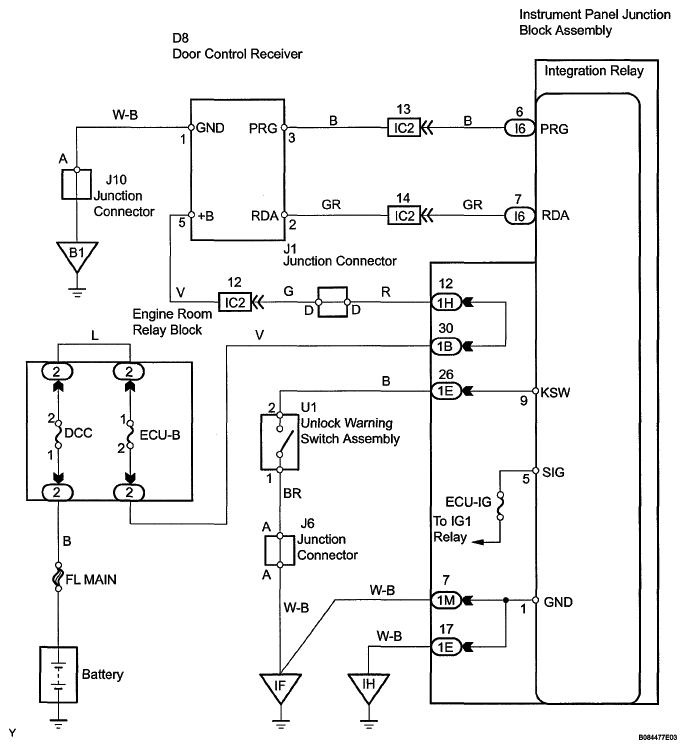

Fig 1: Identifing Wireless Control - Wiring Diagram

G05541573

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
