Home >> Scion >> 2008 >> tC Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Door Lock >> Power Door Lock Control System >> Key Lock-in Prevention Function does not Work Properly >> Wiring Diagram

Key Lock-in Prevention Function does not Work Properly: Wiring Diagram

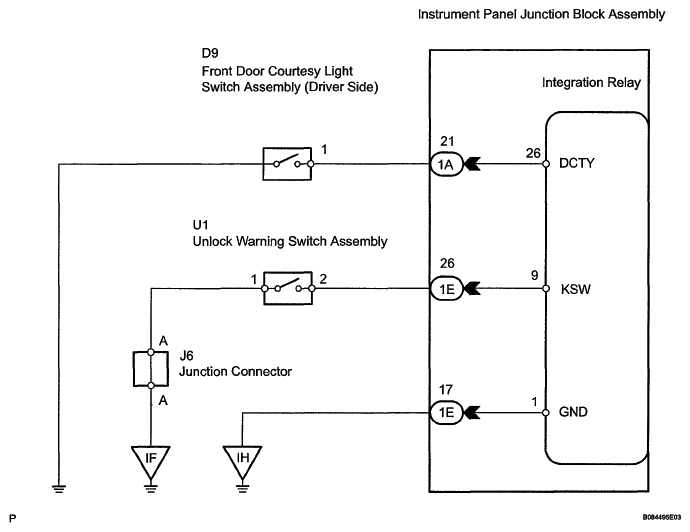

Fig 1: Identifying Front Door Courtesy Light Switch Assembly - Wiring Diagram

G05541550

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
