Fuel Pressure Pulsation Damper: Components

Fig 1: Identifying Fuel Pressure Pulsation Damper Components With Specifications (1 Of 2)
G04865708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

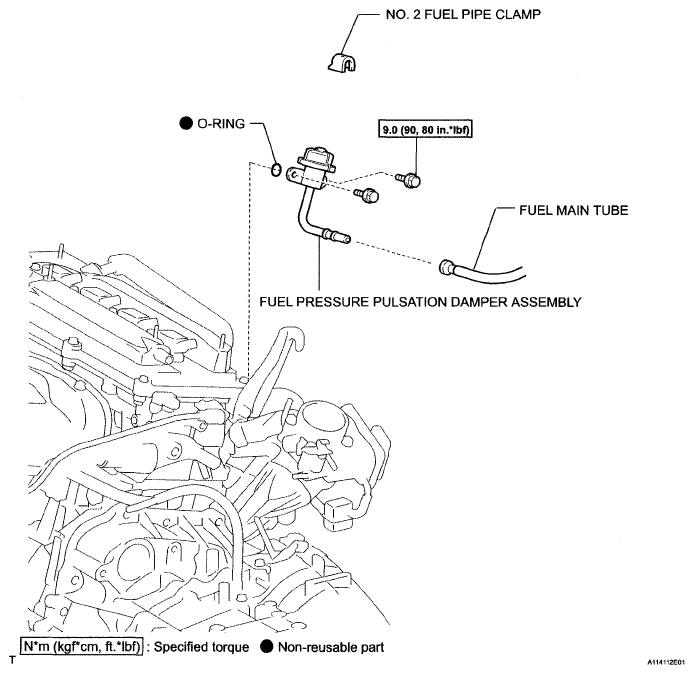

Fig 2: Identifying Fuel Pressure Pulsation Damper Components With Specifications (2 Of 2)
G04865709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
