Rear Bumper: Components

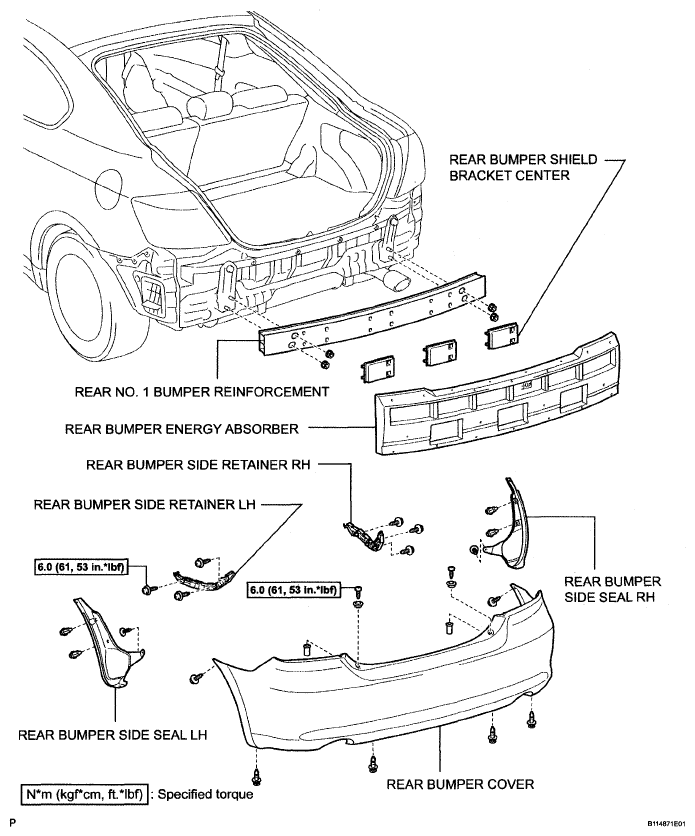

Fig 1: Identifying Rear Bumper Components With Specifications

G04867724

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
