Transmission Control Cable: Components

Fig 1: Identifying Transmission Control Cable Components With Specifications (1 Of 2)
G04867910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

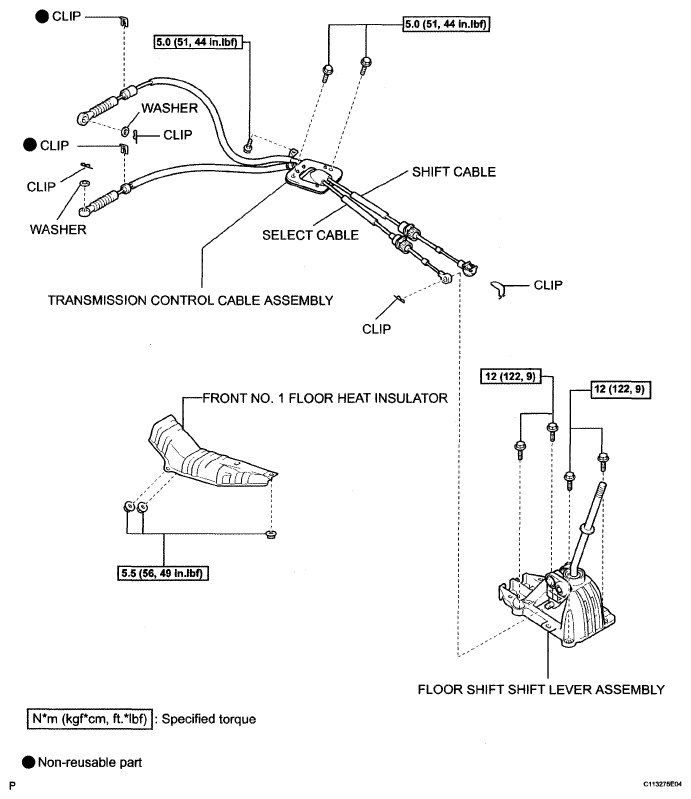

Fig 2: Identifying Transmission Control Cable Components With Specifications (2 Of 2)
G04867911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
