Output Shaft: Components

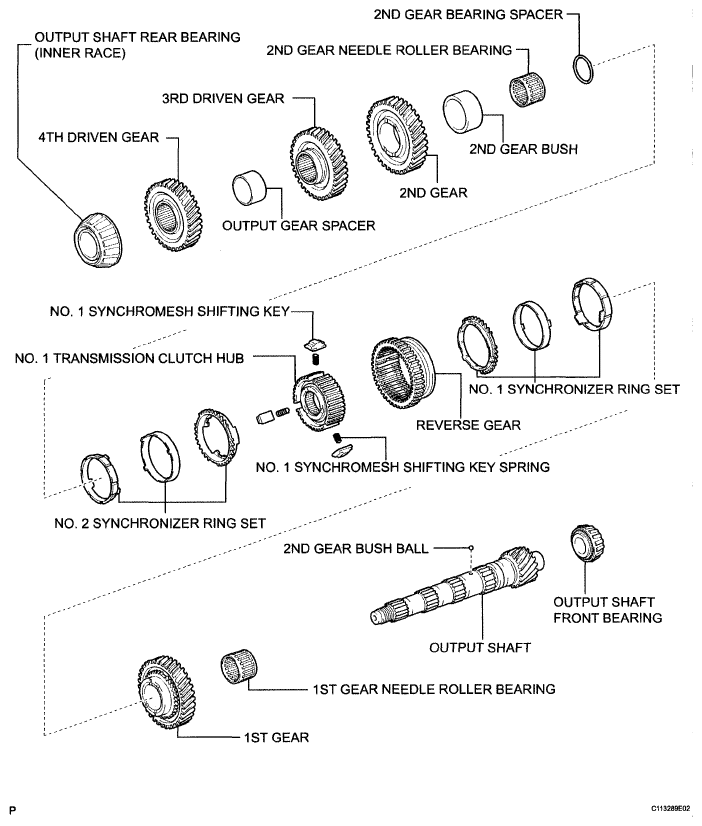

Fig 1: Identifying Output Shaft Components Location

G04868162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
