Input Shaft: Components

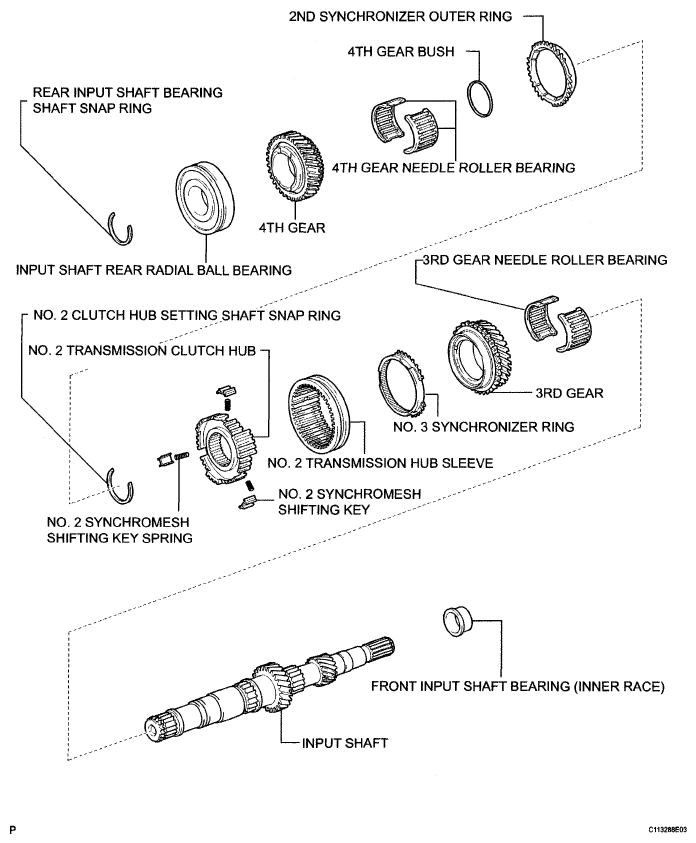

Fig 1: Identifying Input Shaft Components Location

G04868119

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
