Differential Case: Components

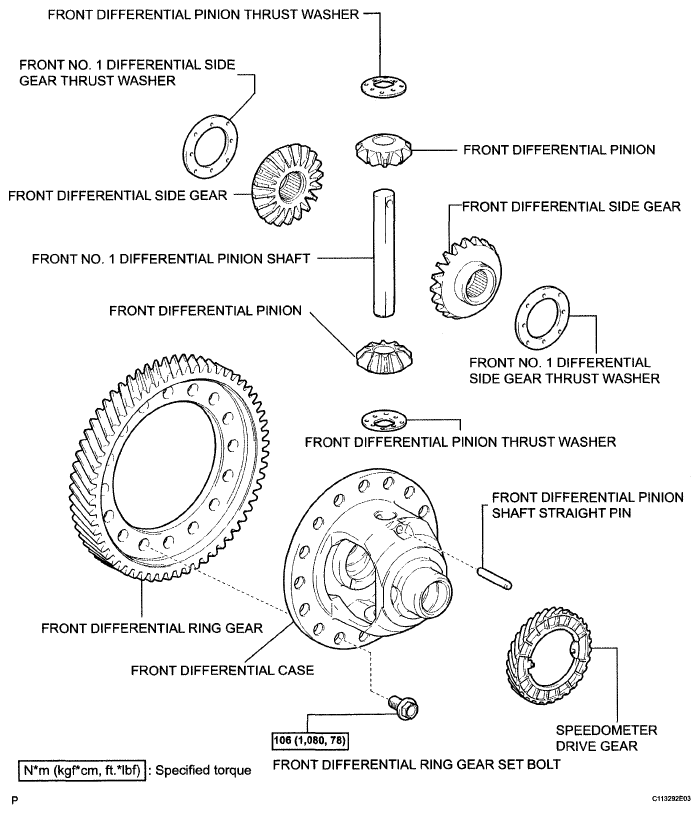

Fig 1: Identifying Differential Case Components With Specifications

G04868241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
