Vane Pump: Components

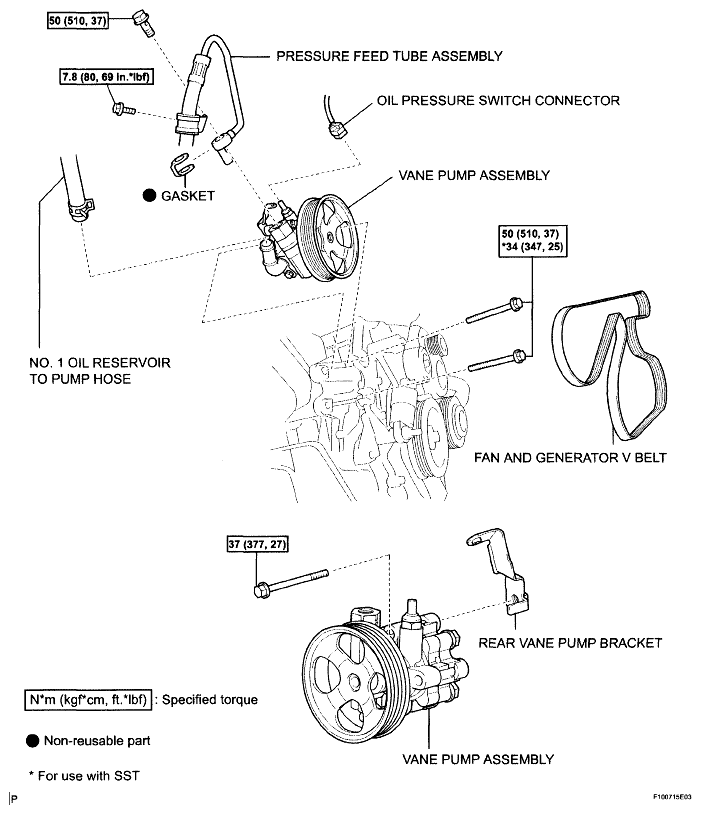

Fig 1: Identifying Vane Pump Components With Specifications (1 Of 2)
G04868847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

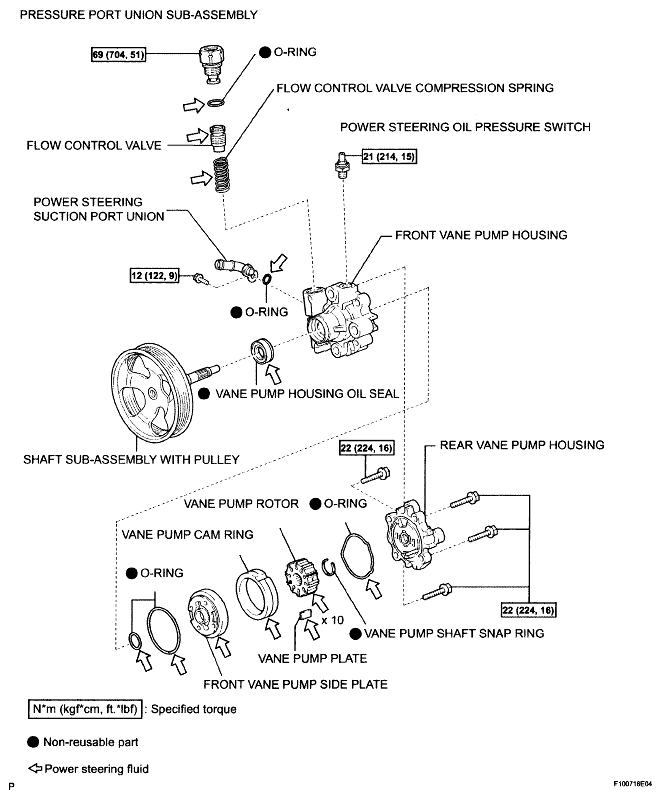

Fig 2: Identifying Vane Pump Components With Specifications (2 Of 2)
G04868848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
