Rear Seat Outer Belt Assembly: Components

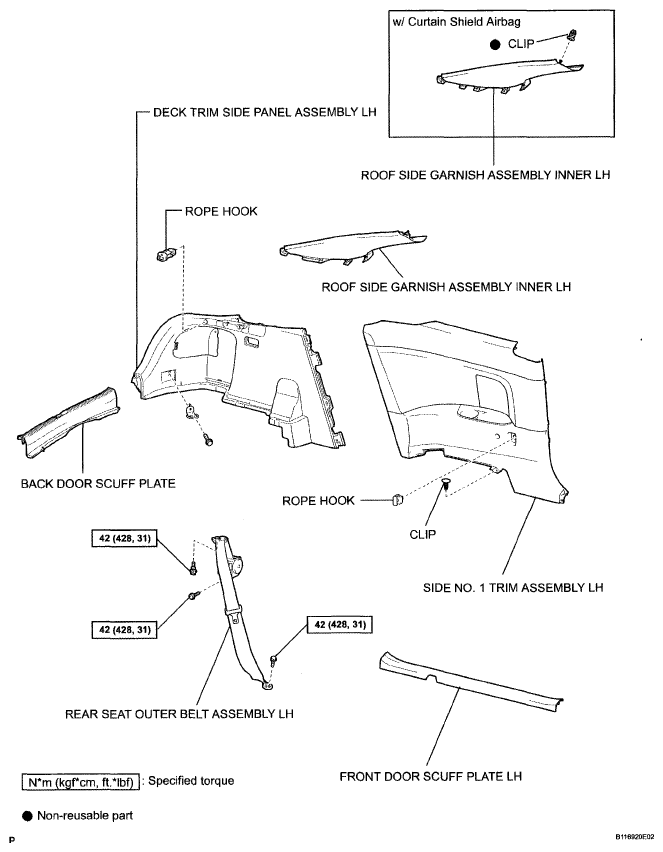

Fig 1: Identifying Rear Seat Outer Belt Assembly Components With Specifications (1 Of 3)
G04866949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

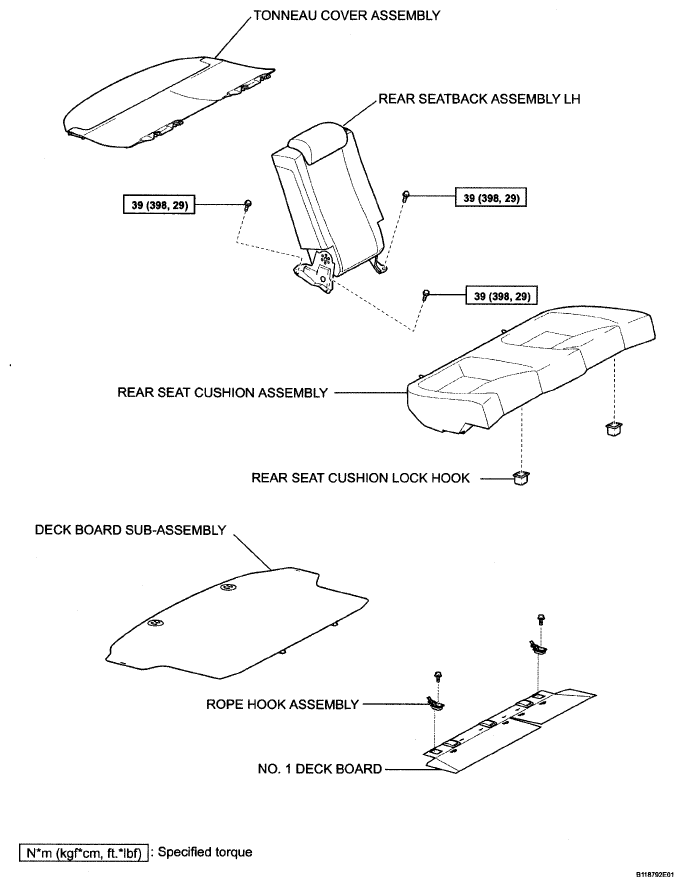

Fig 2: Identifying Rear Seat Outer Belt Assembly Components With Specifications (2 Of 3)
G04866950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

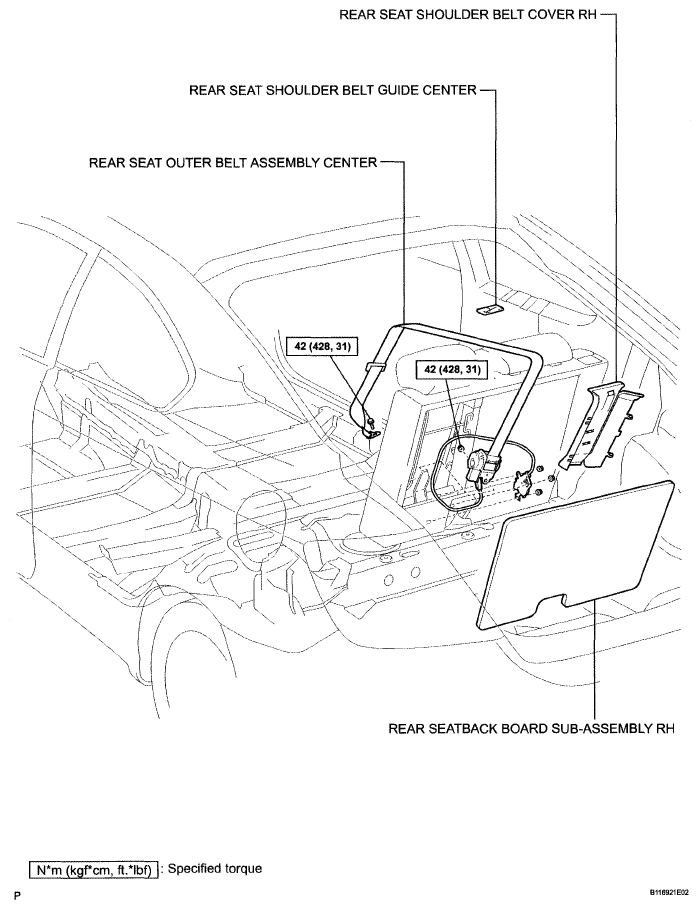

Fig 3: Identifying Rear Seat Outer Belt Assembly Components With Specifications (3 Of 3)
G04866951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
