Rear Seat Inner Belt Assembly: Components

Fig 1: Identifying Rear Seat Inner Belt Assembly Components With Specifications (1 Of 2)
G04866944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

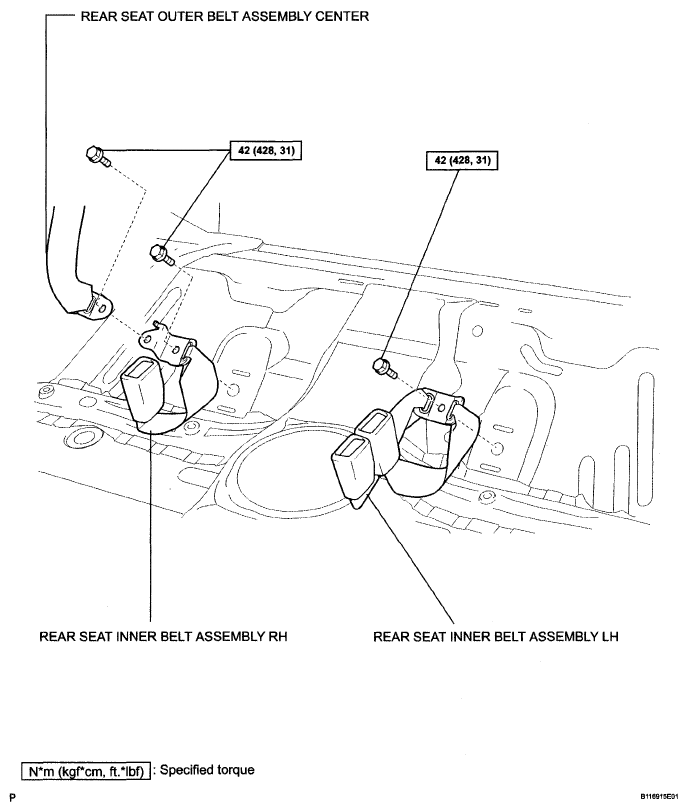

Fig 2: Identifying Rear Seat Inner Belt Assembly Components With Specifications (2 Of 2)
G04866945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
