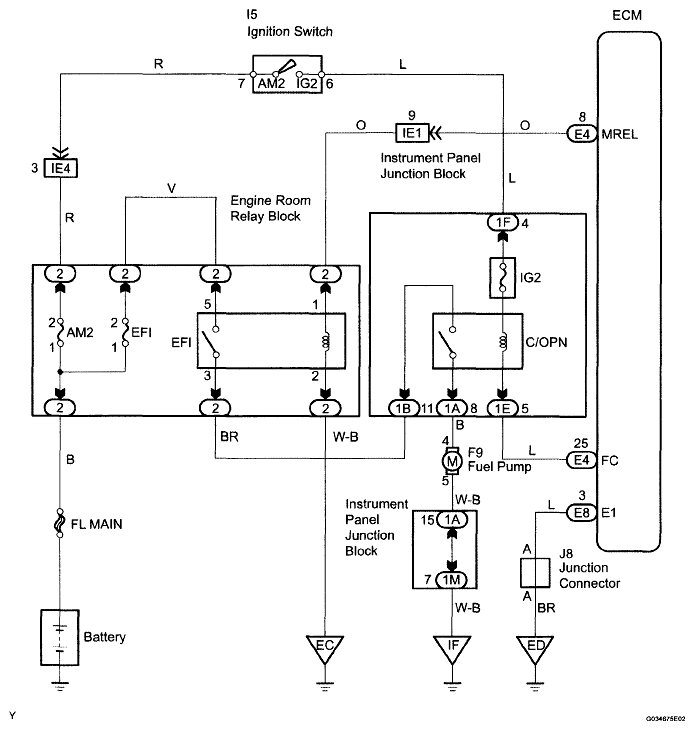

Fuel Pump Control Circuit: Wiring Diagram

Fig 1: Identifying Fuel Pump Control Wiring Diagram

G04869301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
