ECM Power Source Circuit: Wiring Diagram

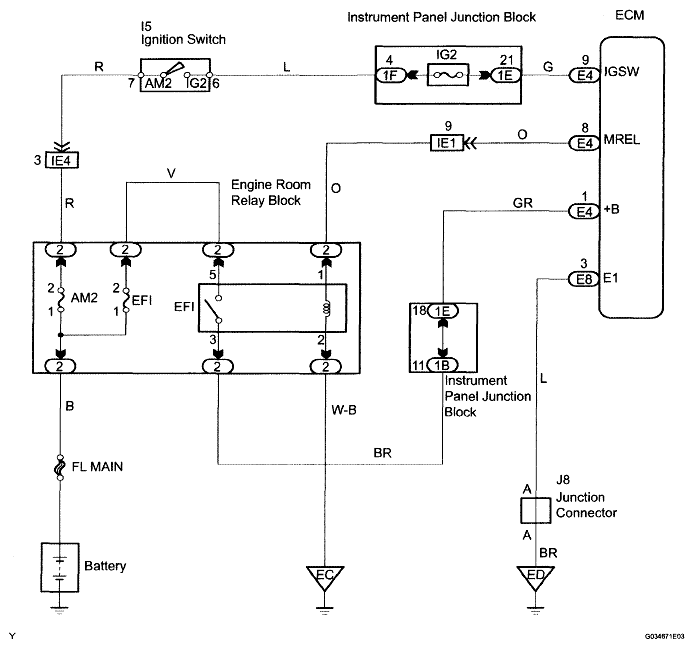

Fig 1: Identifying ECM Power Source Wiring Diagram

G04869288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
