DTC P2118 Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

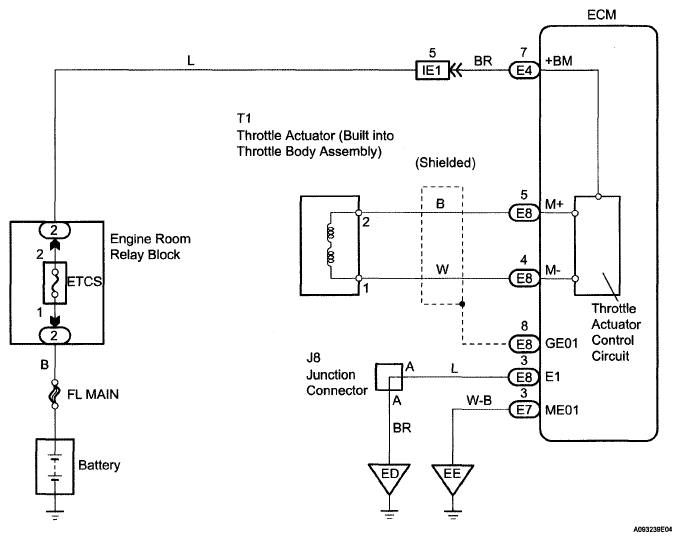

Fig 1: Identifying Throttle Actuator Control Motor Current Range / Performance Wiring Diagram
G04869173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
