DTC P0617 Starter Relay Circuit High: Wiring Diagram

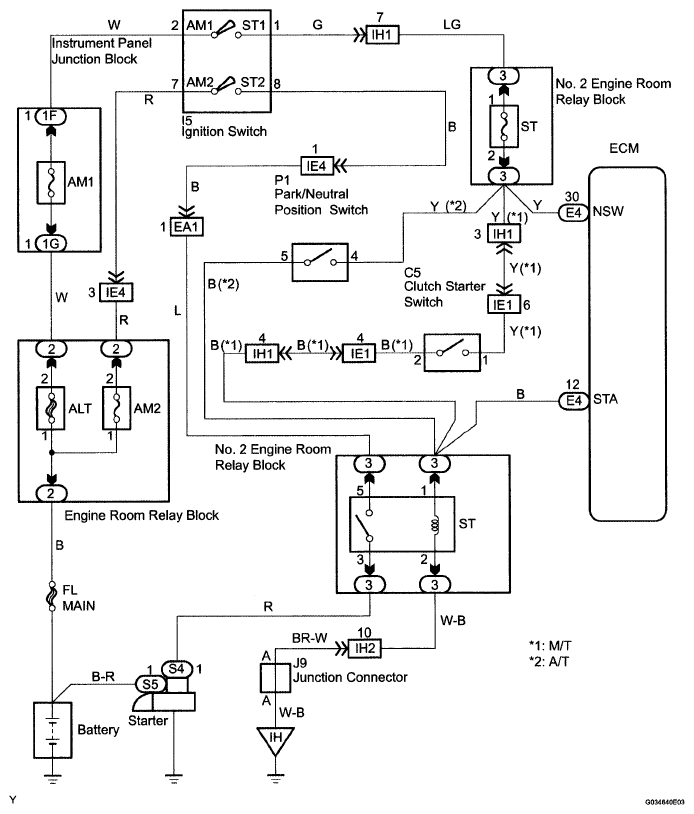

Fig 1: Identifying Starter Relay Wiring Diagram

G04869162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
