Fuel Injector: Components

Fig 1: Identifying Fuel Injector Components Location With Specifications (1 Of 2)
G04865687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

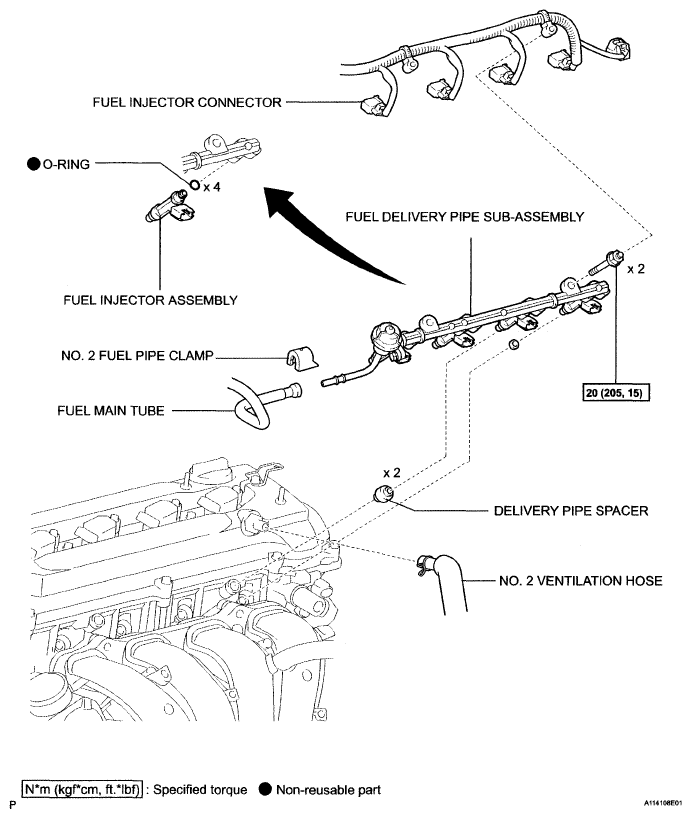

Fig 2: Identifying Fuel Injector Components Location With Specification (2 Of 2)
G04865688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
