Cooling System (Mechanical): Cooling: Thermostat: Components

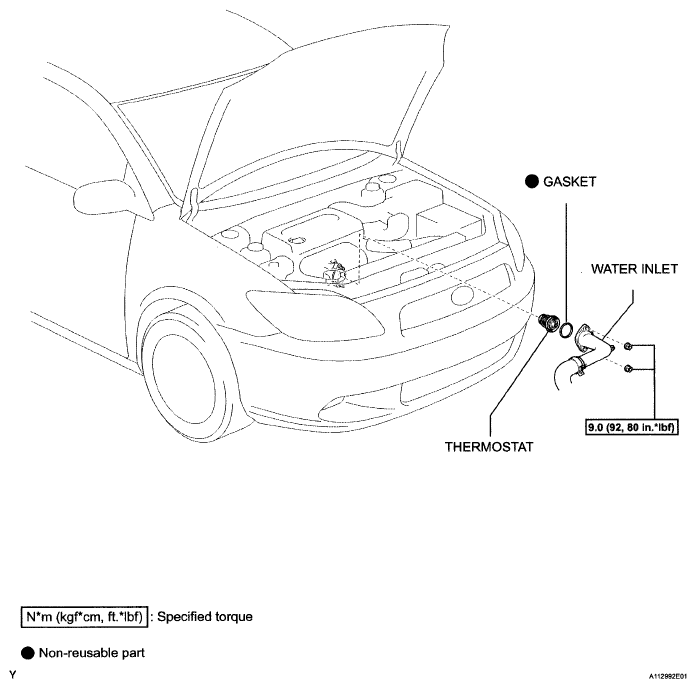

Fig 1: Identifying Thermostat Components With Specification

G04865869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
