Home >> Scion >> 2007 >> tC Base, Standard >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Cooling >> Radiator >> Components

Cooling System (Mechanical): Cooling: Radiator: Components

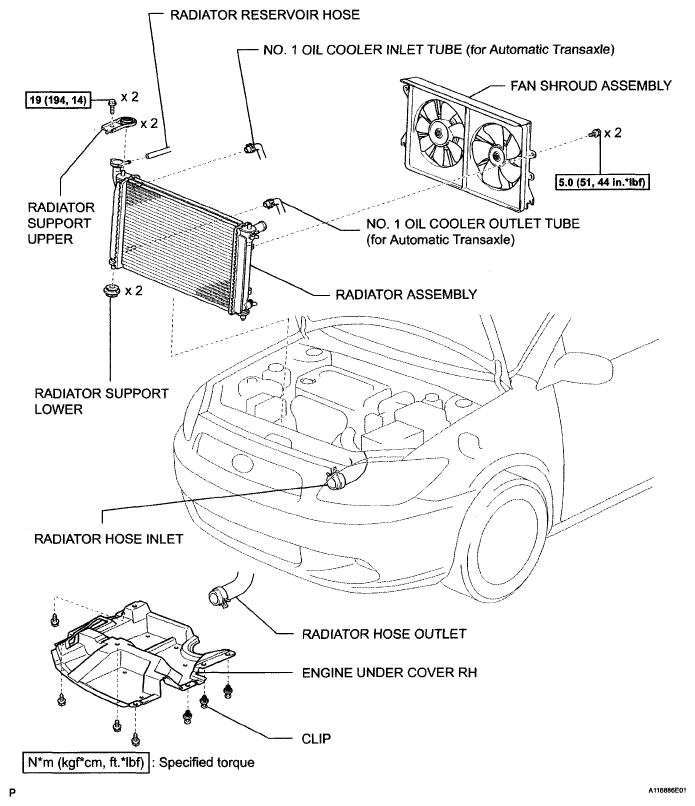

Fig 1: Identifying Radiator Components Location With Specification (1 Of 2)
G04865878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

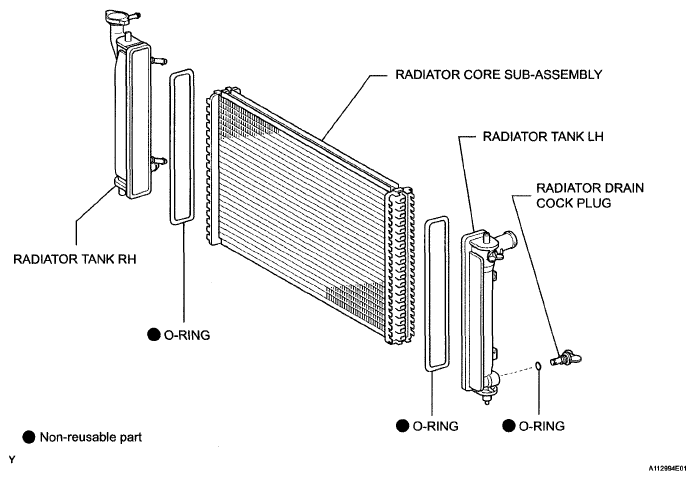

Fig 2: Identifying Radiator Components Location With Specification (2 Of 2)
G04865879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
