Emission Control: Canister: Components

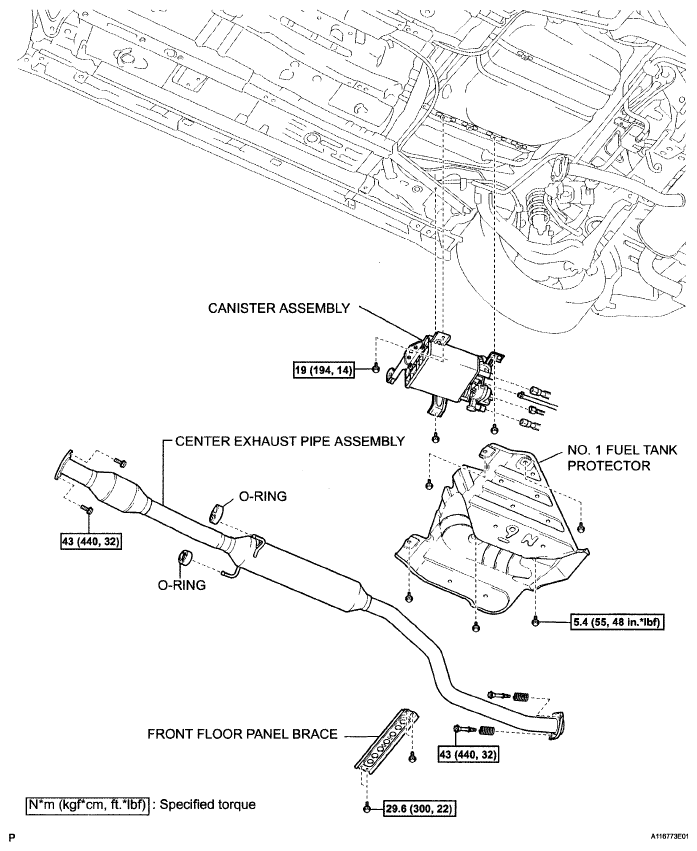

Fig 1: Identifying Canister Components Location With Specifications (1 Of 2)
G04865789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

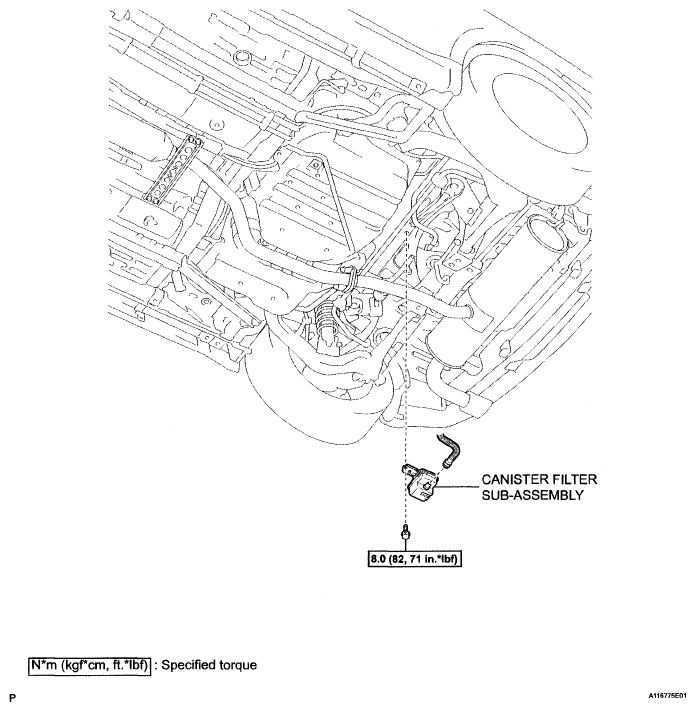

Fig 2: Identifying Canister Components Location With Specifications (2 Of 2)
G04865790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
