Brake Actuator Components: Components

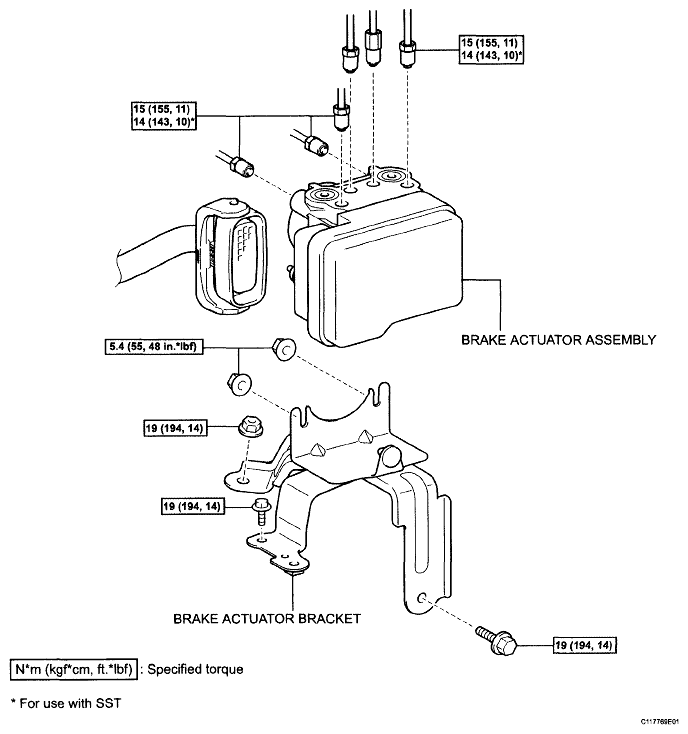

Fig 1: Identifying Brake Actuator Components With Specifications

G04868667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
