Power Window Master Switch Circuit: Wiring Diagram

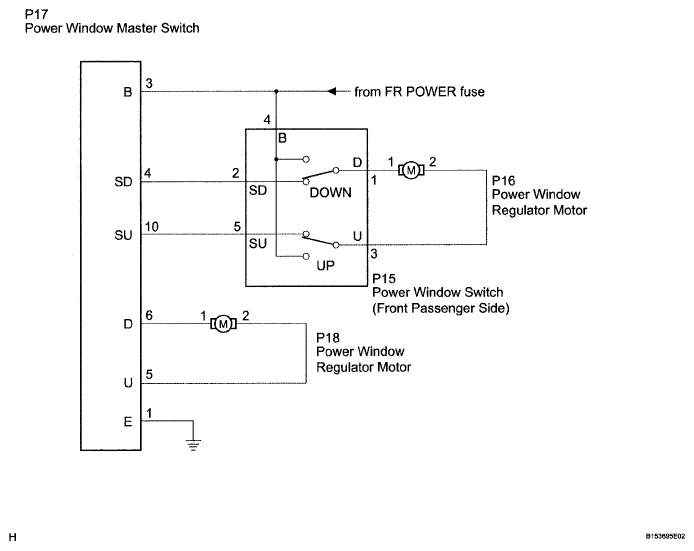

Fig 1: Identifying Power Window Master Switch Wiring Diagram

G04867352

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
