Inspection Procedure

1. Remove the power window motor.
   1. Apply battery voltage to the motor connector according to the table below.
      NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

      Standard

      POWER WINDOW REGULATOR MOTOR STANDARD MEASUREMENT CONDITION AND SPECIFIED CONDITION REFERENCE



      Measurement Condition	Specified Condition
      Battery positive (+) → Terminal 2 Battery negative (-) → Terminal 1	Motor gear rotates clockwise
      Battery positive (+) → Terminal 1 Battery negative (-) → Terminal 2	Motor gear rotates counterclockwise

NG: REPLACE POWER WINDOW REGULATOR MOTOR

Fig 1: Inspecting Power Window Regulator Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP

1. Disconnect the P17 and P18 connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   WIRE HARNESS STANDARD RESISTANCE SPECIFICATIONS



   Tester Connection	Condition	Specified Condition
   P17-5(U)-P18-2	Always	Below 1 Ω
   P17-6(D)-P18-1	Always	Below 1 Ω
   P17-5(U)- Body ground	Always	10 kΩ or higher
   P17-6 (D) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

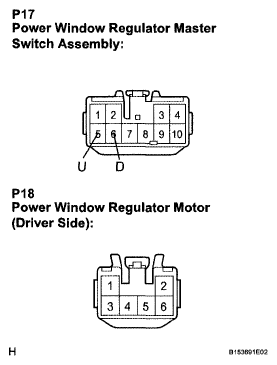

Fig 2: Identifying P17 And P18 Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
