Home >> Scion >> 2007 >> tC Base, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> POWER WINDOW CONTROL SYSTEM (w/ Jam Protection Function) >> Remote Up / Down Function does not Operate >> Wiring Diagram

Remote Up / Down Function does not Operate: Wiring Diagram

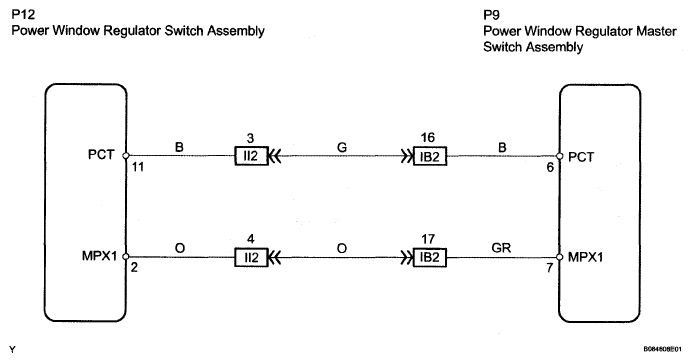

Fig 1: Identifying Remote Up / Down Function Wiring Diagram

G04867326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
