Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch: Wiring Diagram

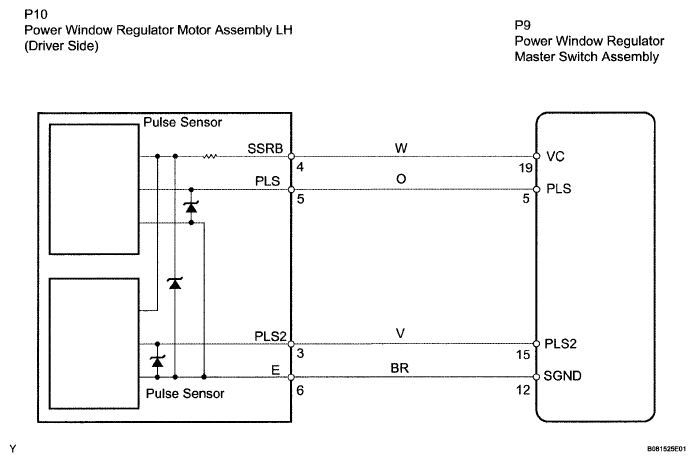

Fig 1: Identifying Driver Side Power Window Wiring Diagram
G04867340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
