Front Seat Assembly: Components

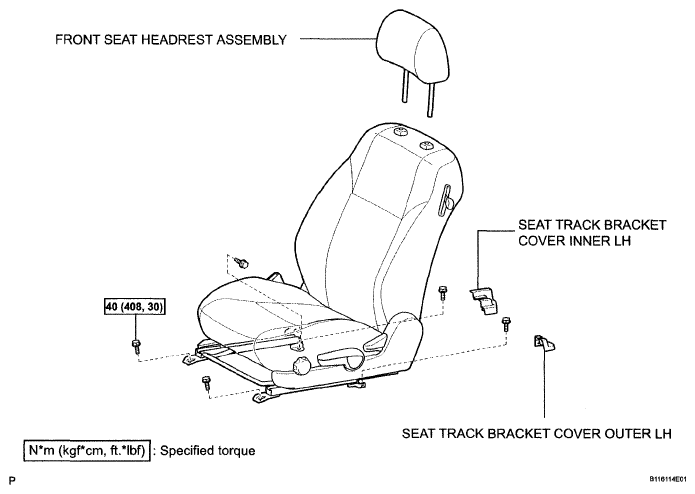

Fig 1: Identifying Front Seat Assembly Components With Specifications (1 Of 4)
G04867539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

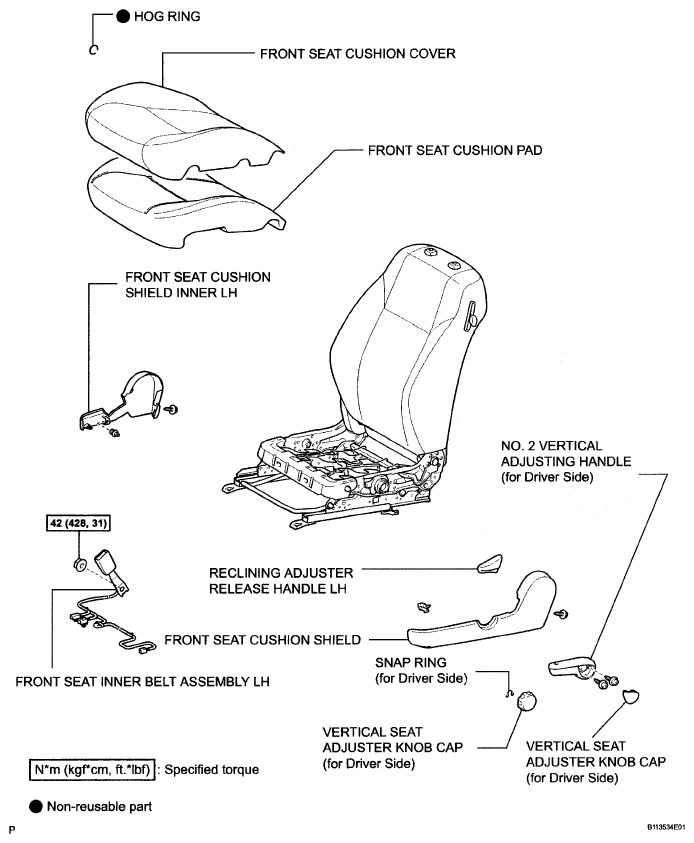

Fig 2: Identifying Front Seat Assembly Components With Specifications (2 Of 4)
G04867540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

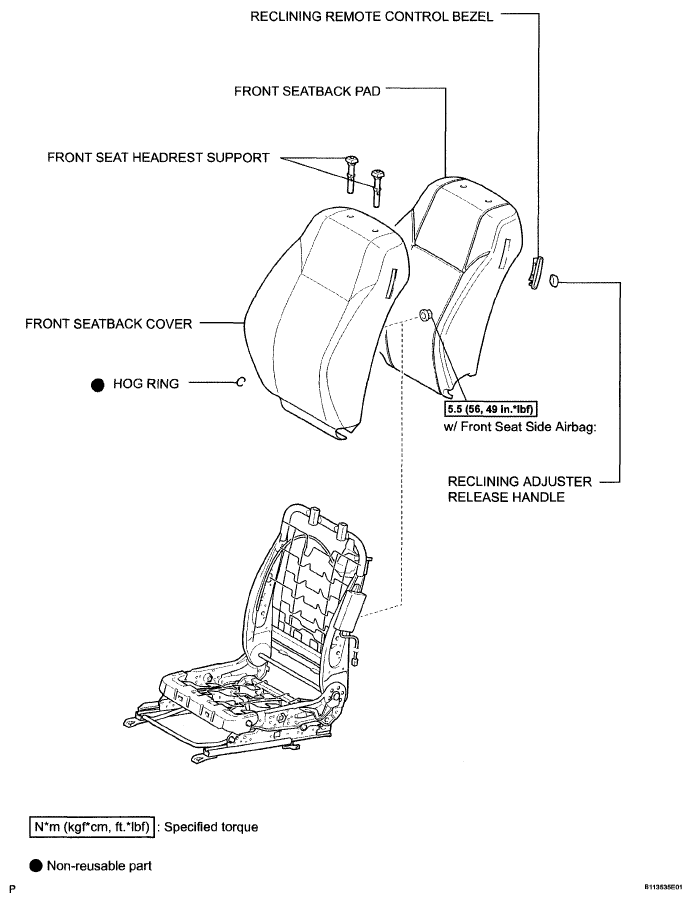

Fig 3: Identifying Front Seat Assembly Components With Specifications (3 Of 4)
G04867541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

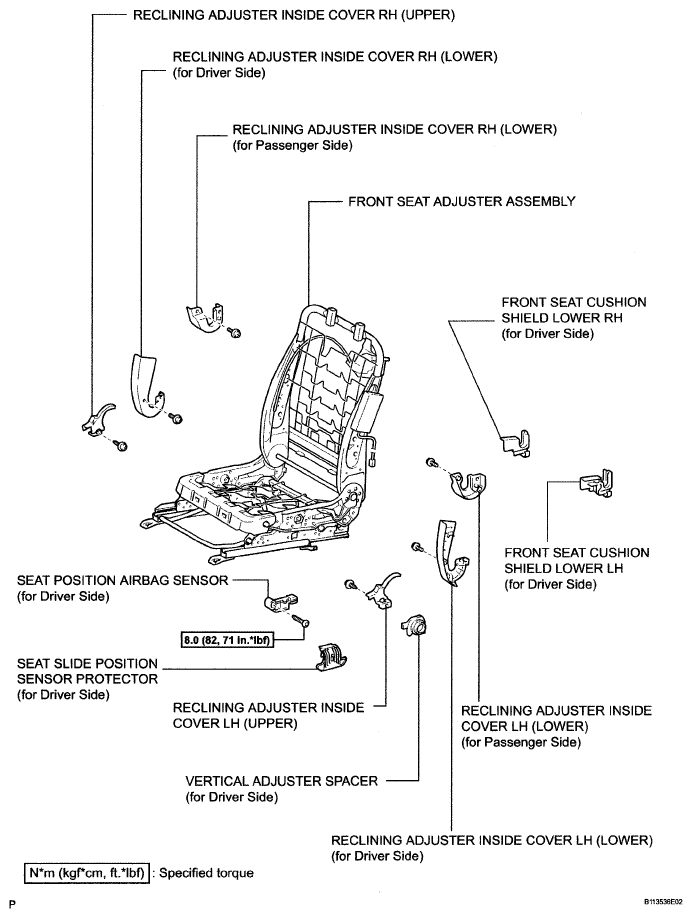

Fig 4: Identifying Front Seat Assembly Components With Specifications (4 Of 4)
G04867542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
