Only Wireless Control Function is Inoperative: Wiring Diagram

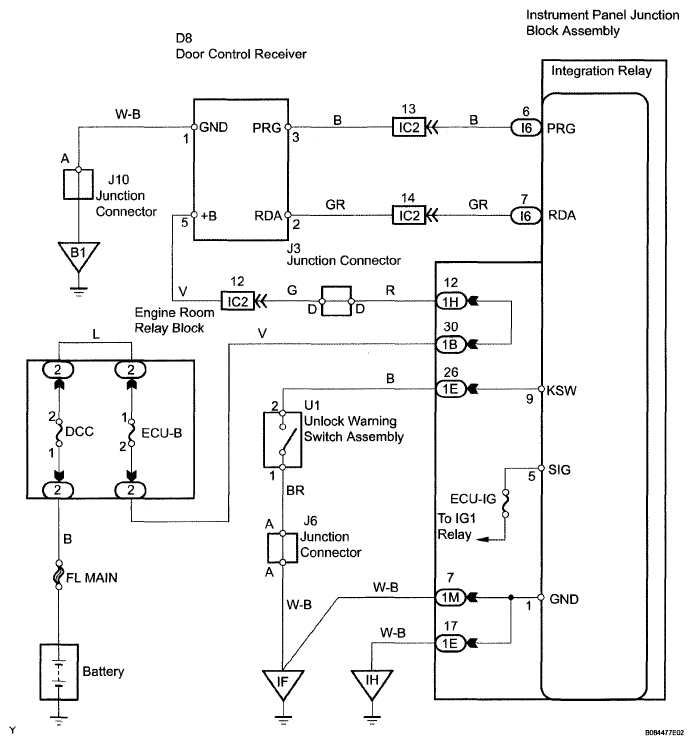

Fig 1: Identifying Only Wireless Control Function Inoperative Wiring Diagram

G04867181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
