Engine Immobiliser System: Notes

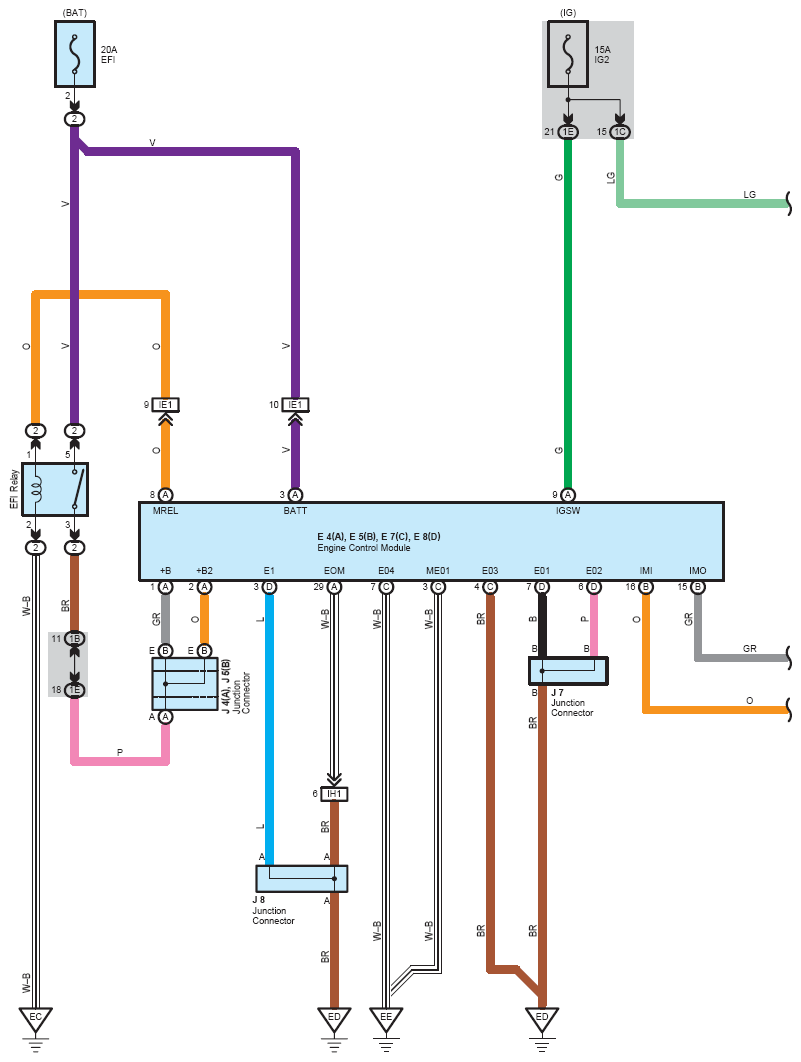

Fig 1: Engine Immobiliser System Wiring Diagram (1 Of 2)
G08759377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

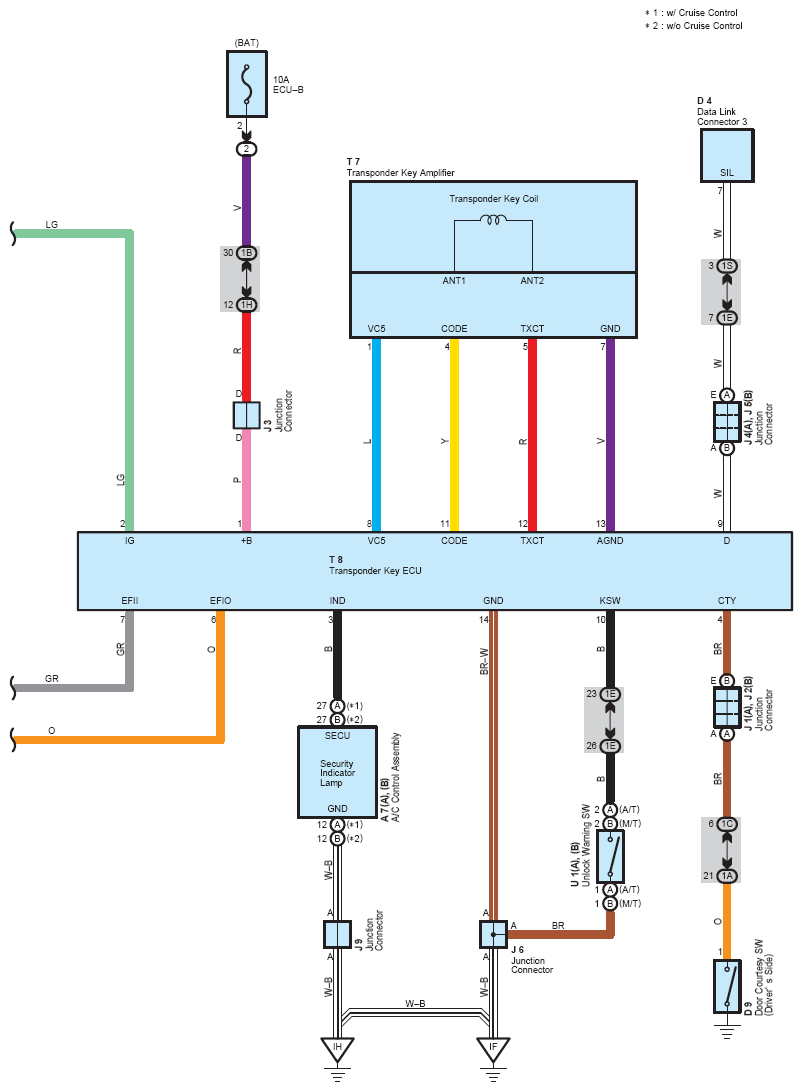

Fig 2: Engine Immobiliser System Wiring Diagram (2 Of 2)
G08759378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
