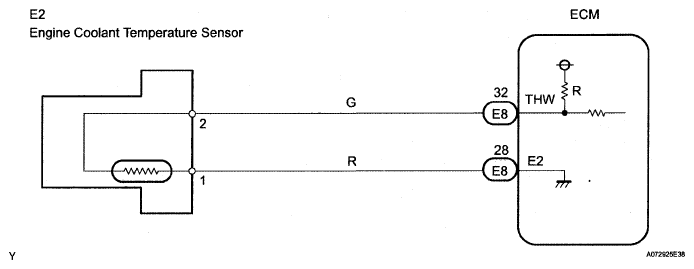

DTC P0115 Engine Coolant Temperature Circuit I; DTC P0117 Engine Coolant Temperature Circuit Low Input I; DTC P0118 Engine Coolant Temperature Circuit High Input I: Wiring Diagram

Fig 1: Identifying Intake Air Temperature Sensor Wiring Diagram
G04869024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
